360 VIEW
Those specification & photos would be able to change without notice and may vary from actual ones
Suggested retail price
680.000.000 vnđ
Price is included VAT
exploreExterior

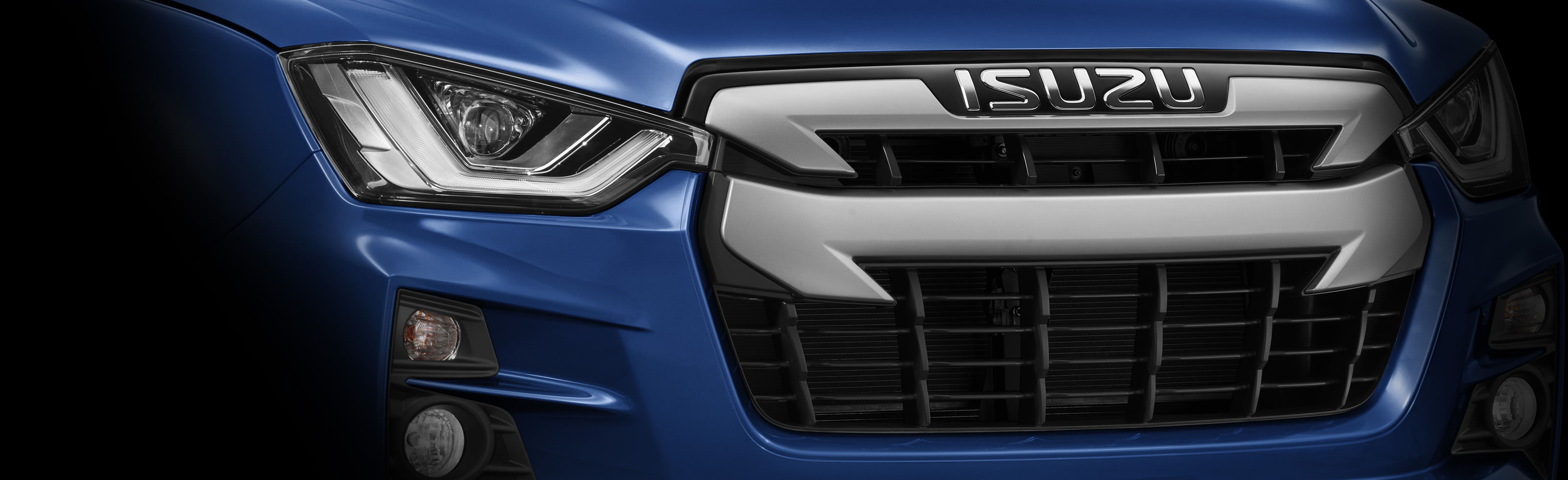

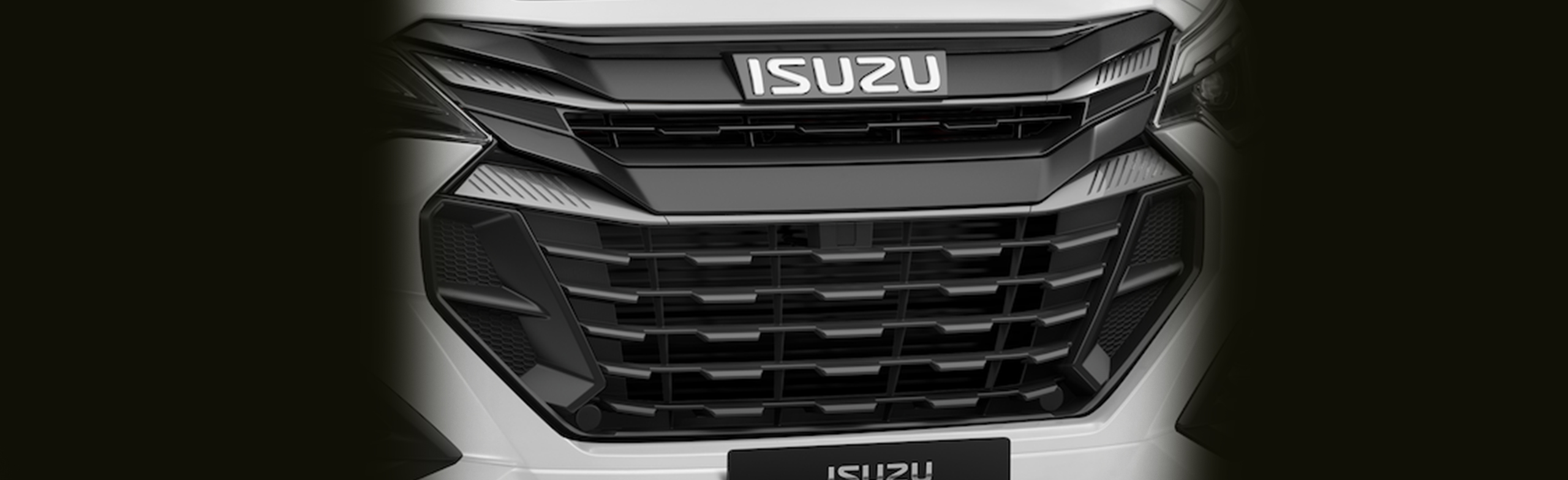

New mighty radiator grill with LED headlamp

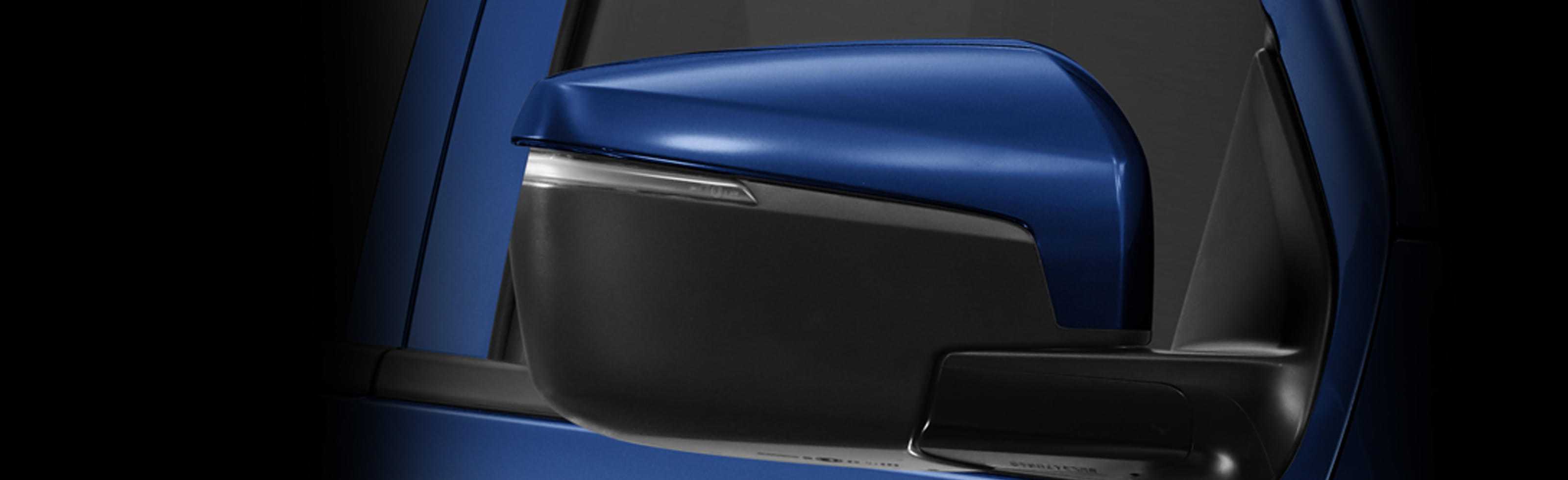

Rear view mirror with LED turn signal lamp

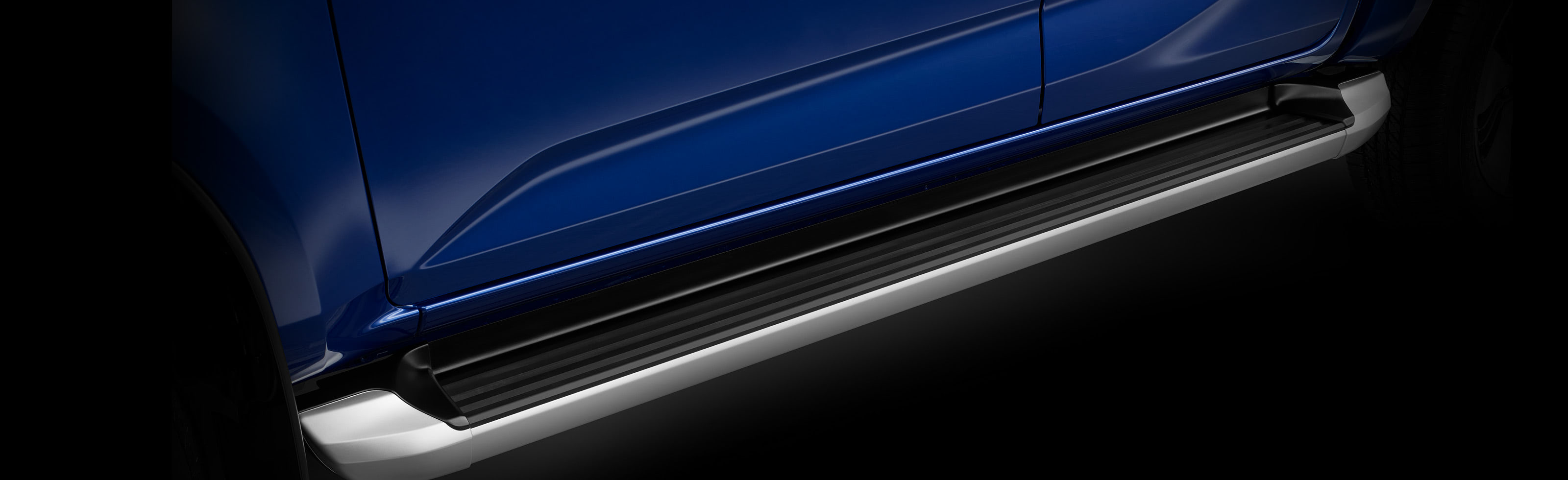

Larger side step

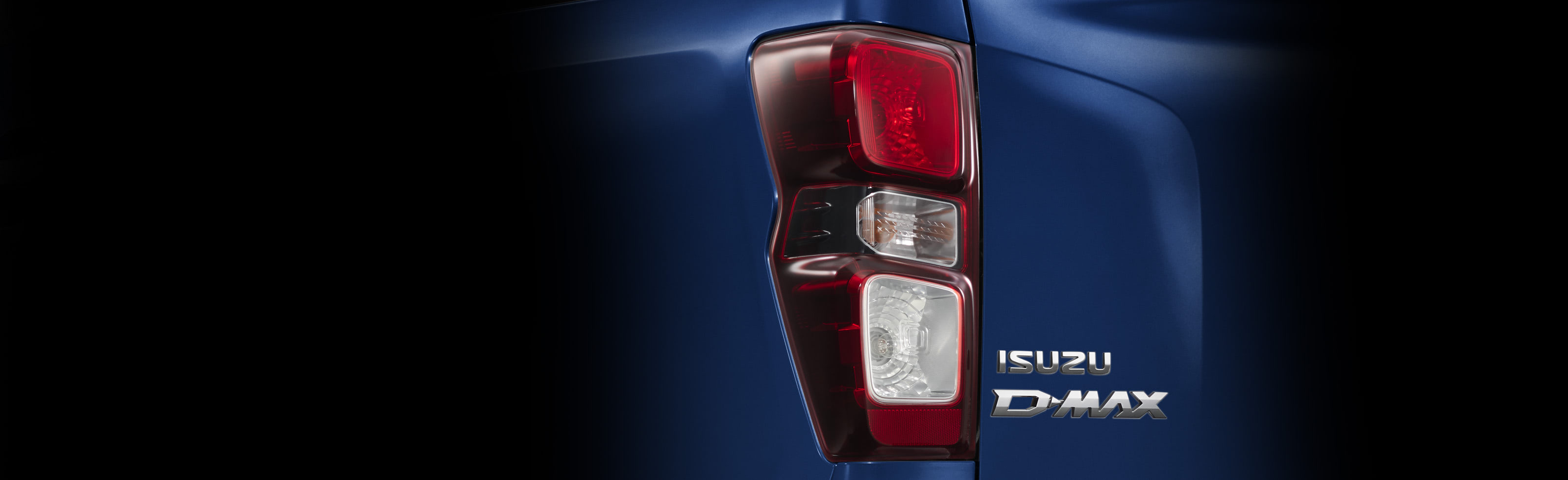

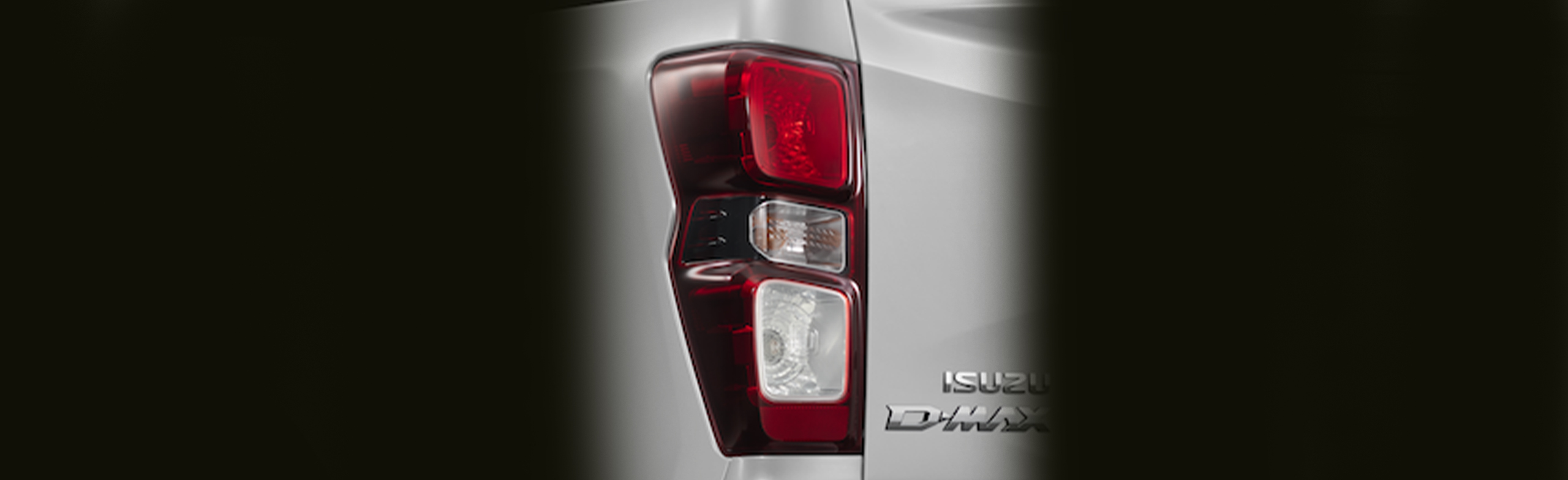

New rear LED combination lamp
Rear bumper integrated two steps
exploreInterior

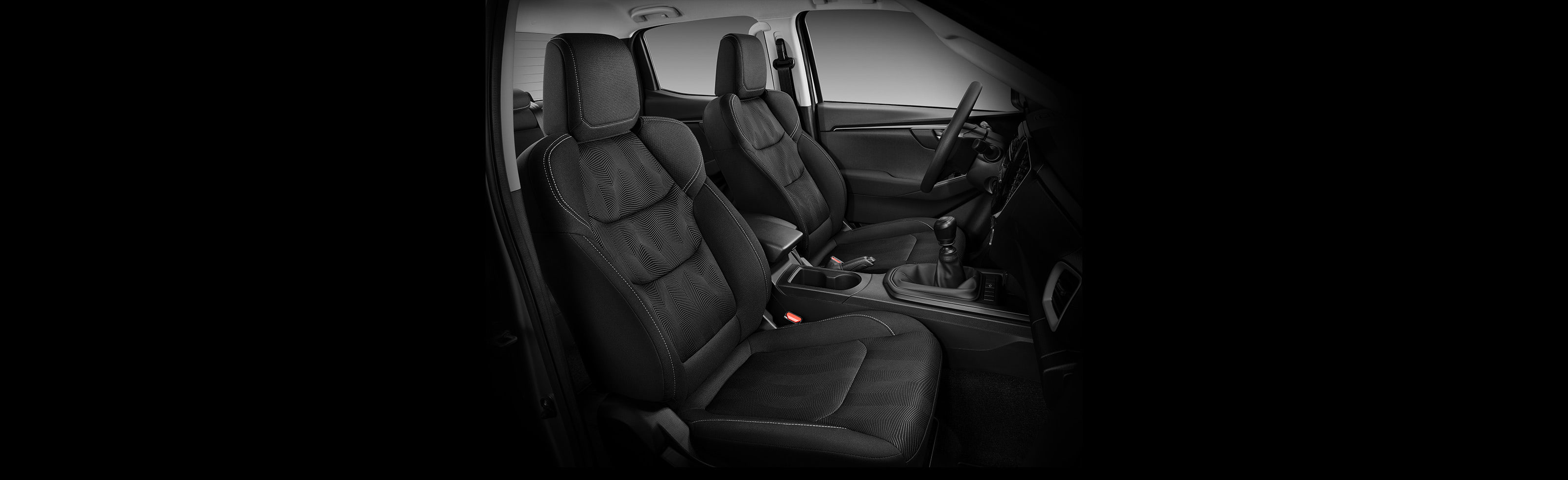

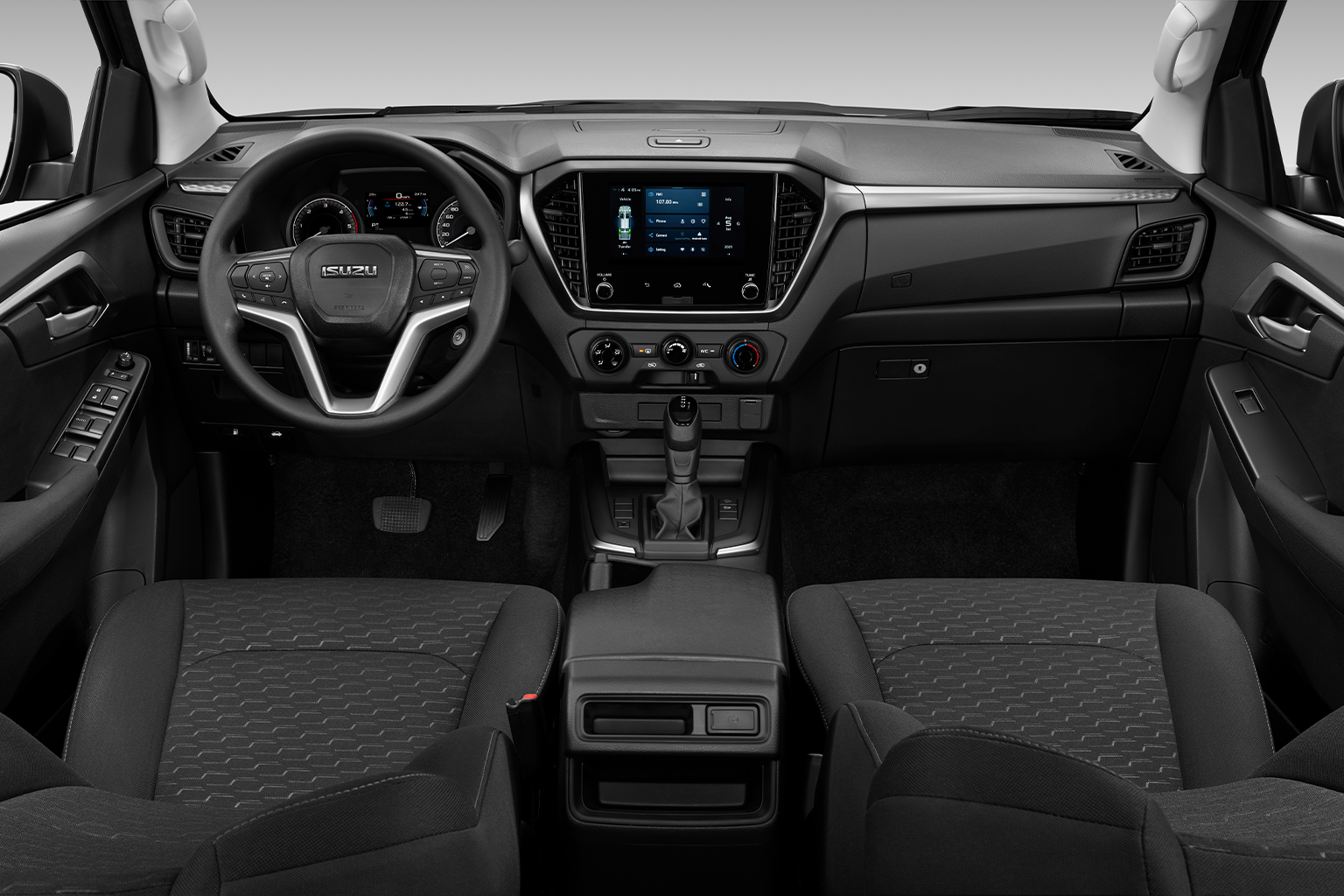

Universal design interior
Steering wheel with audio switch & cruise control switch

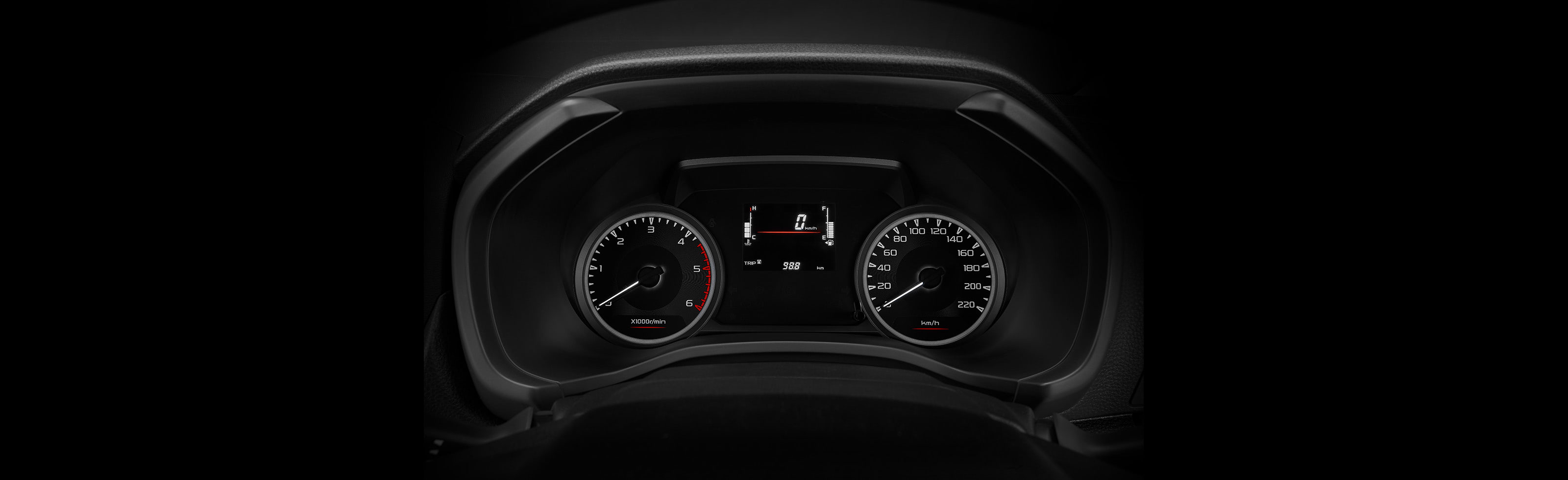

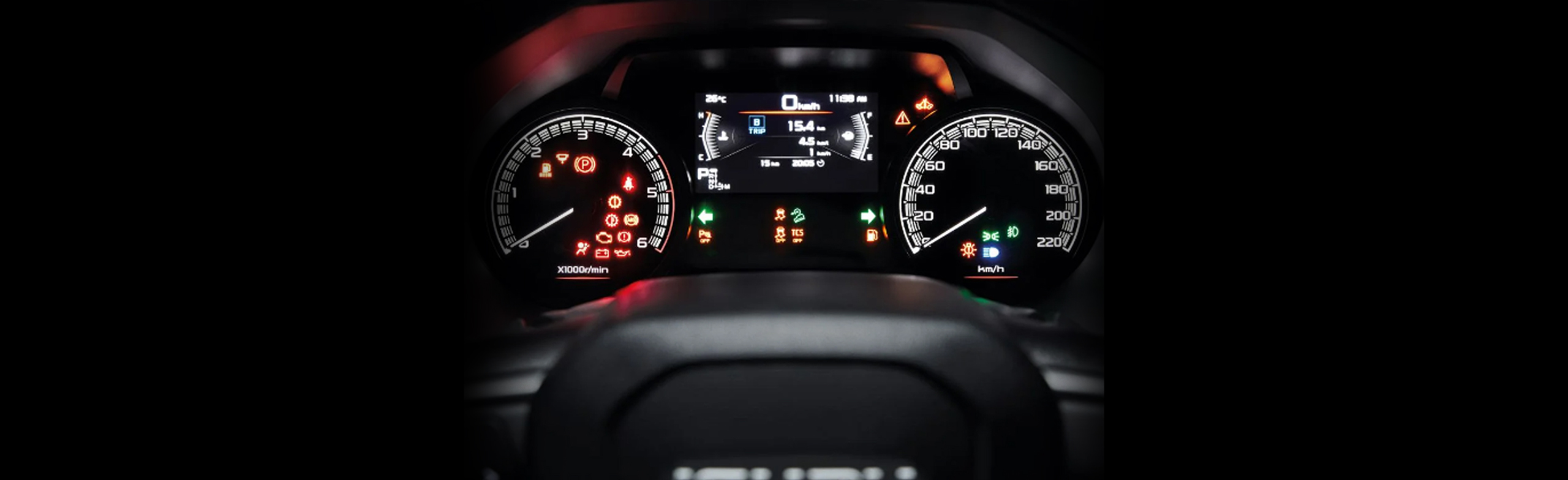

New 4.2 inch Multi Information Display

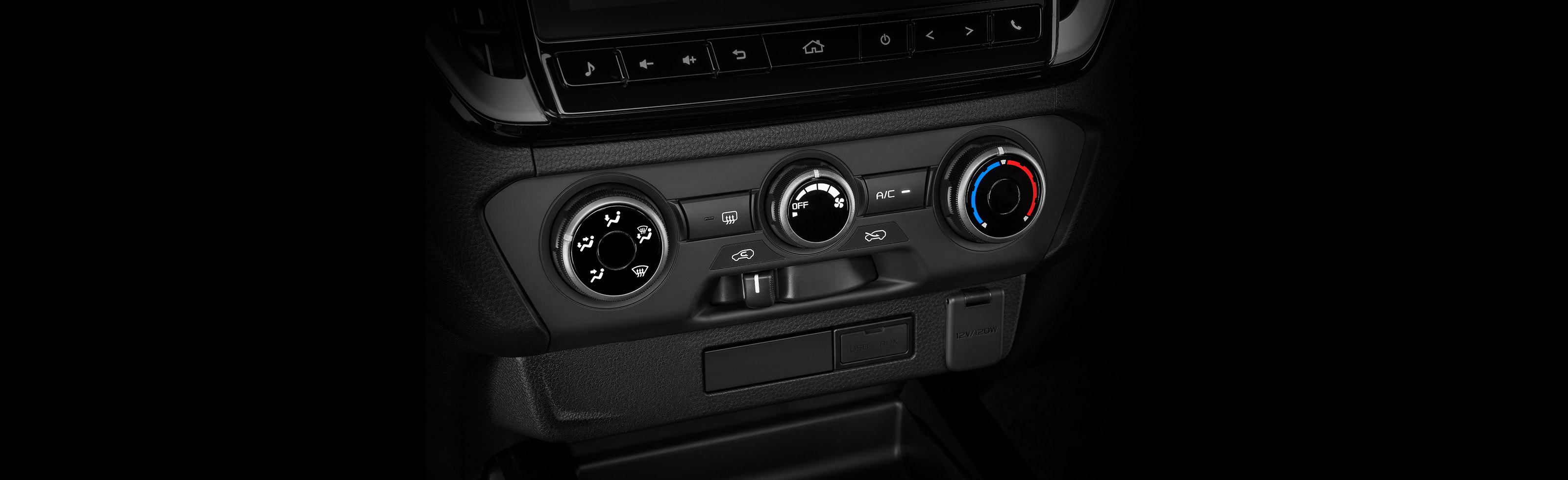

Modern air conditioner console

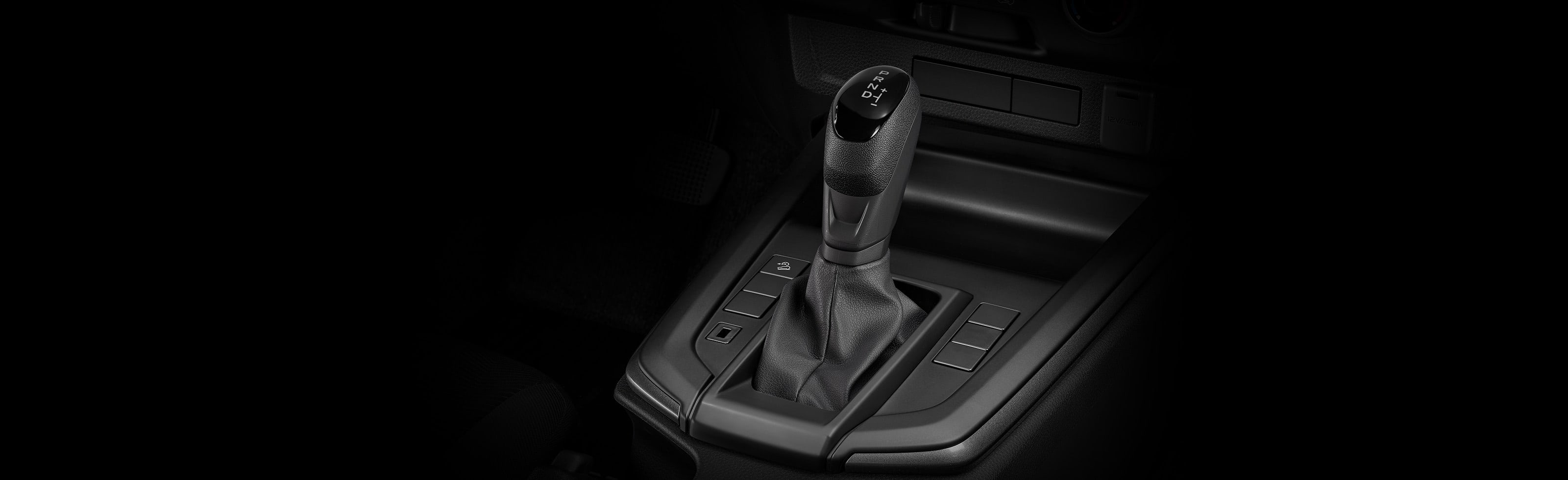

Sporty automatic transmission gear shift

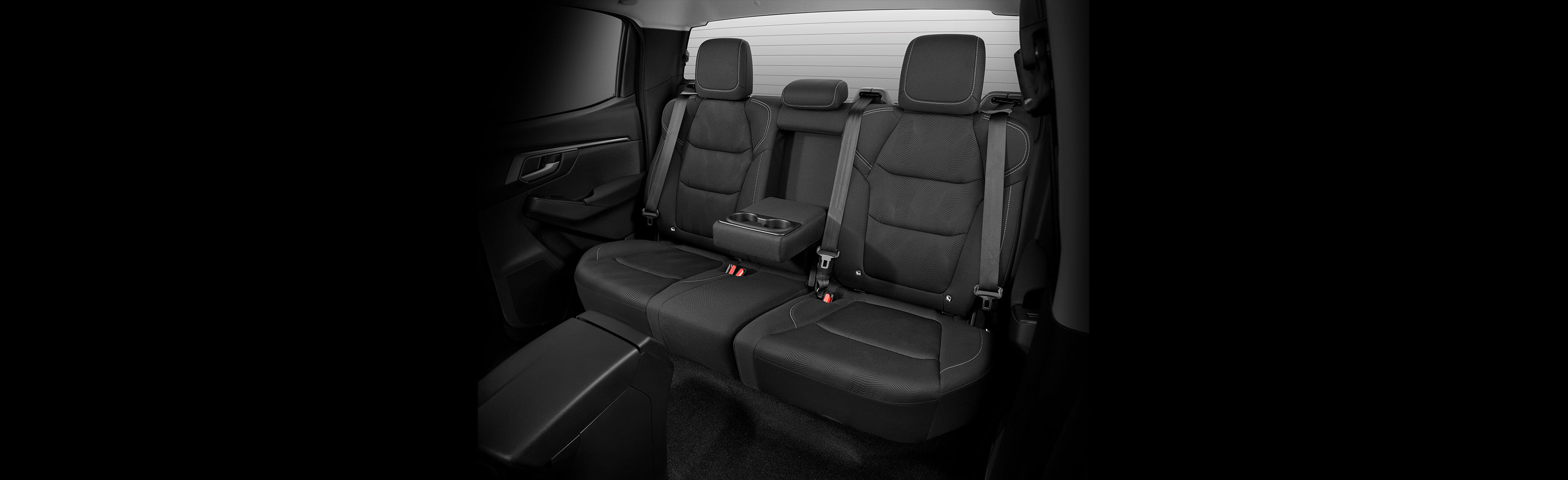

Rear seat row with arm rest
explorePerformance

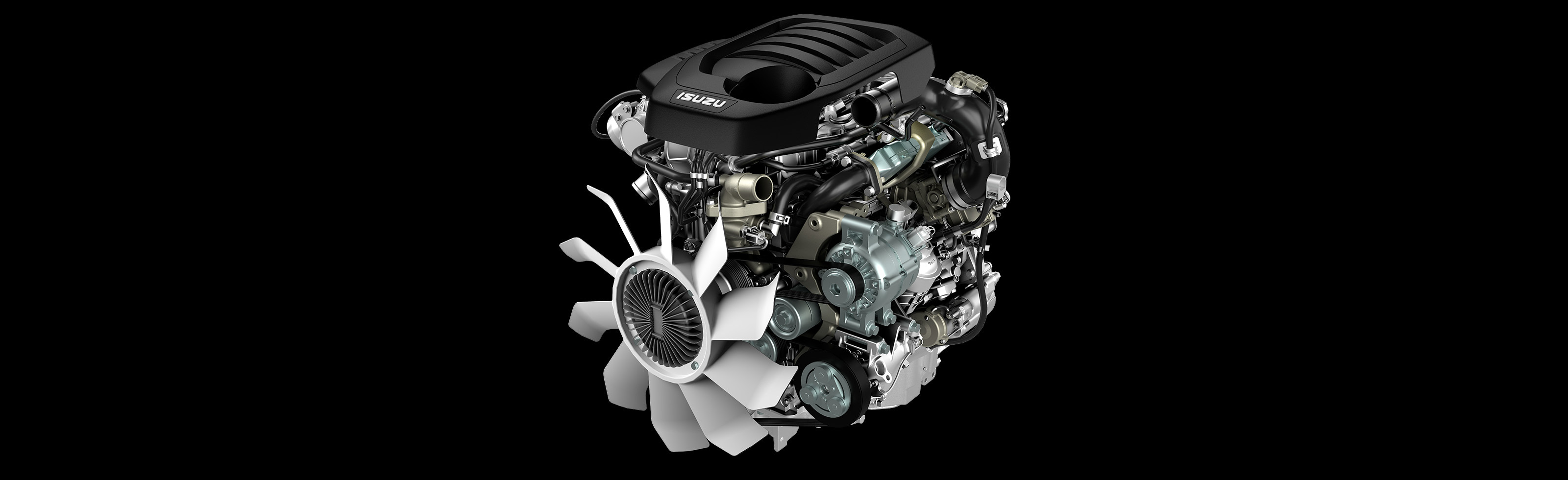

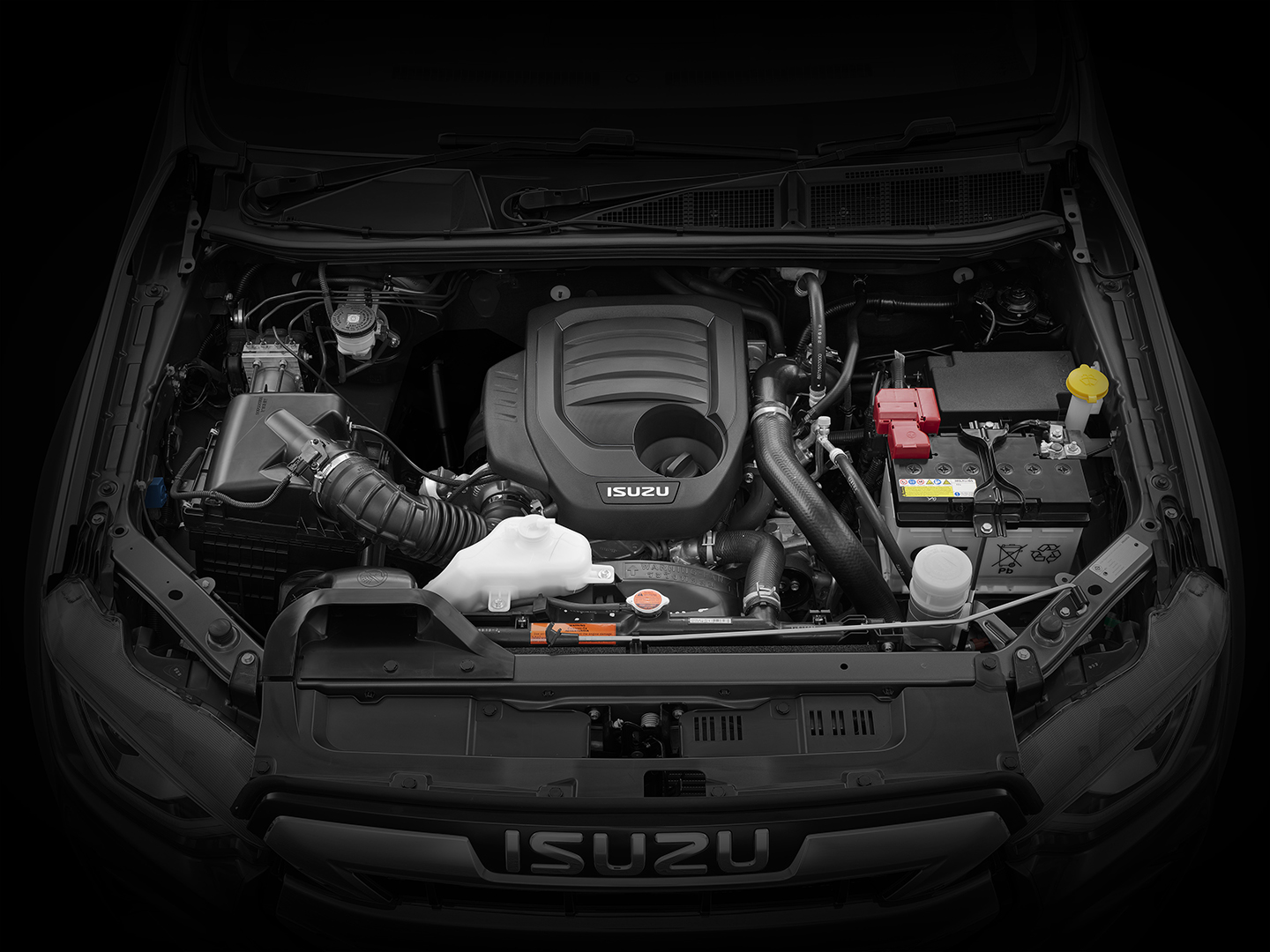

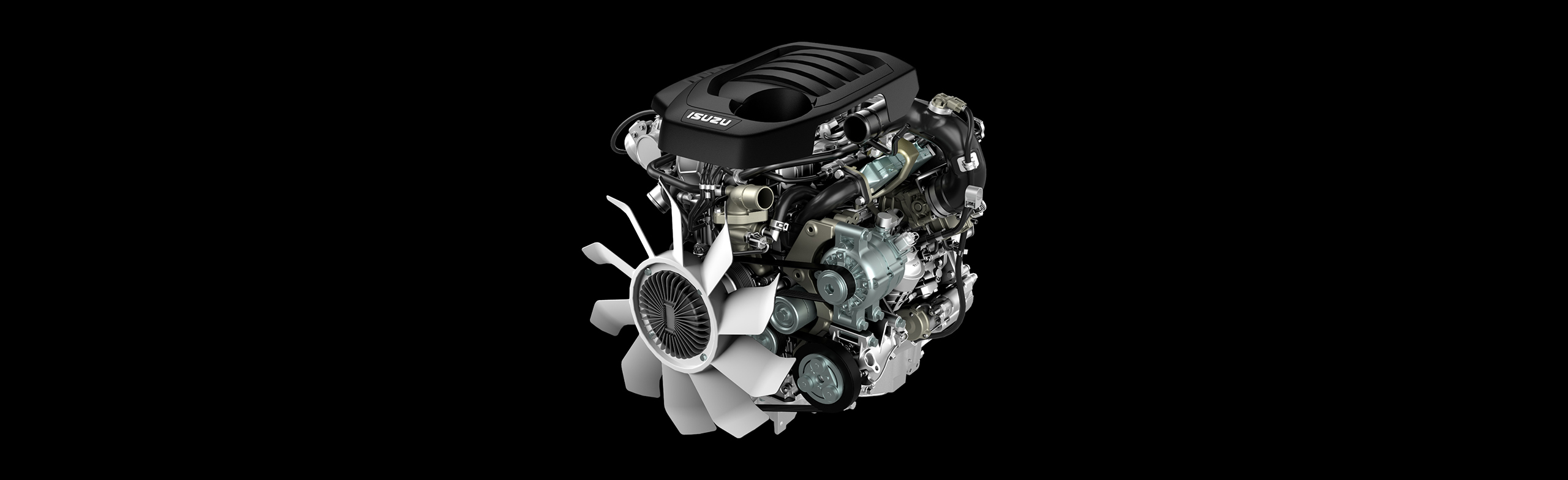

1.9L diesel engine with high fuel economy and durability performance

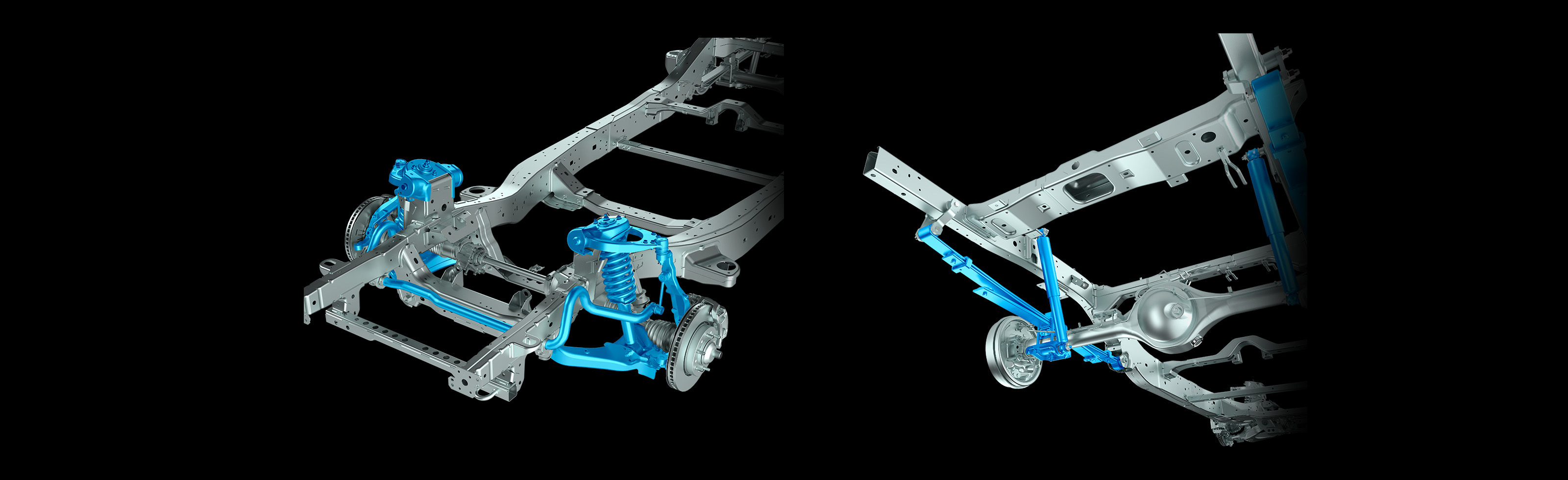

Comfort suspension

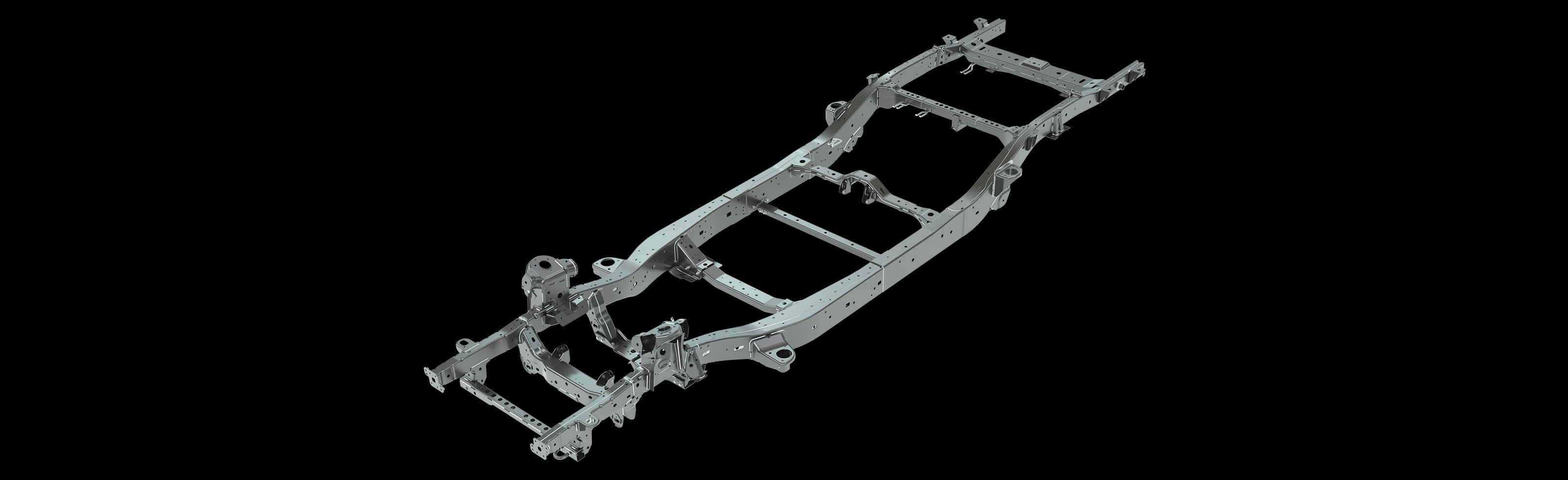

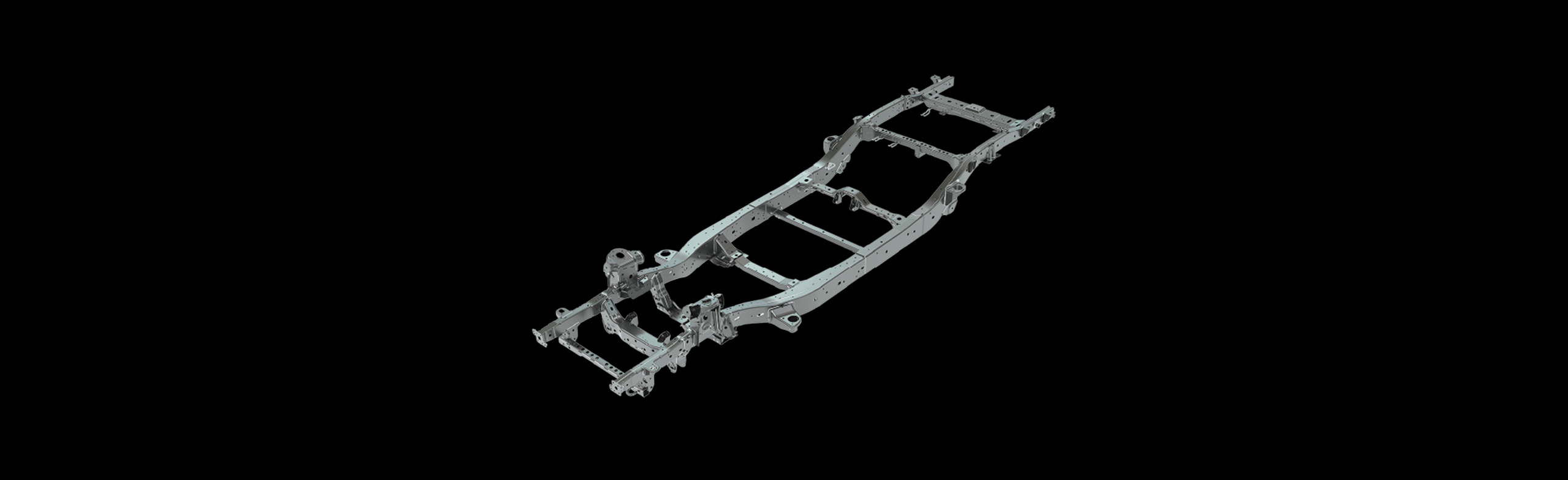

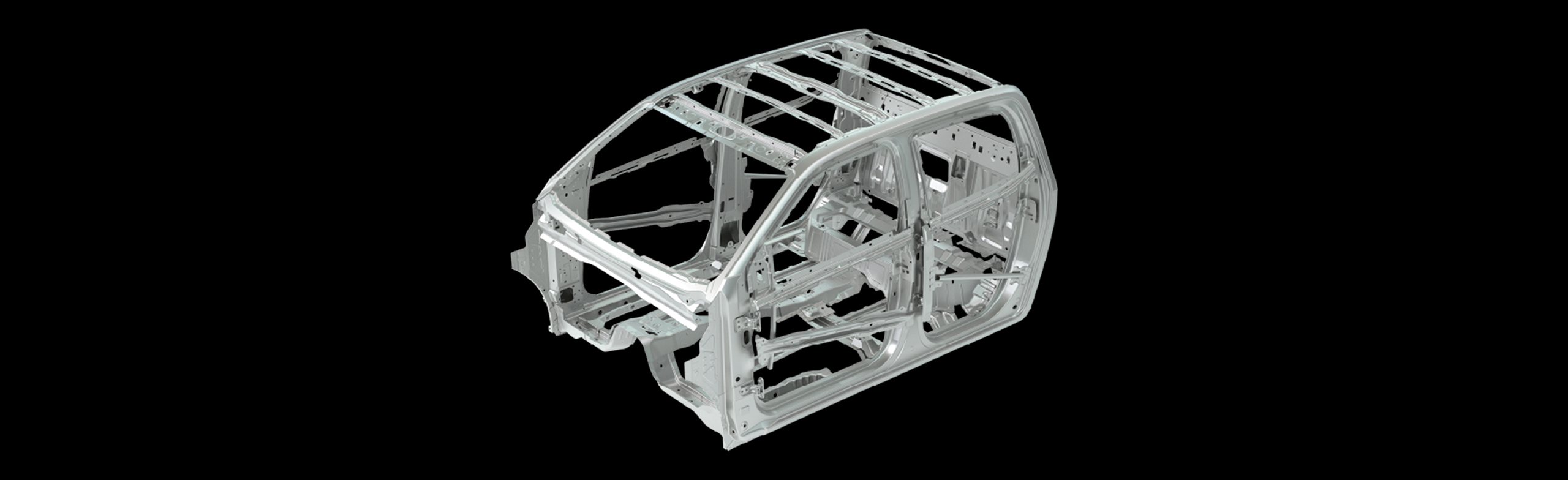

Stronger chassis

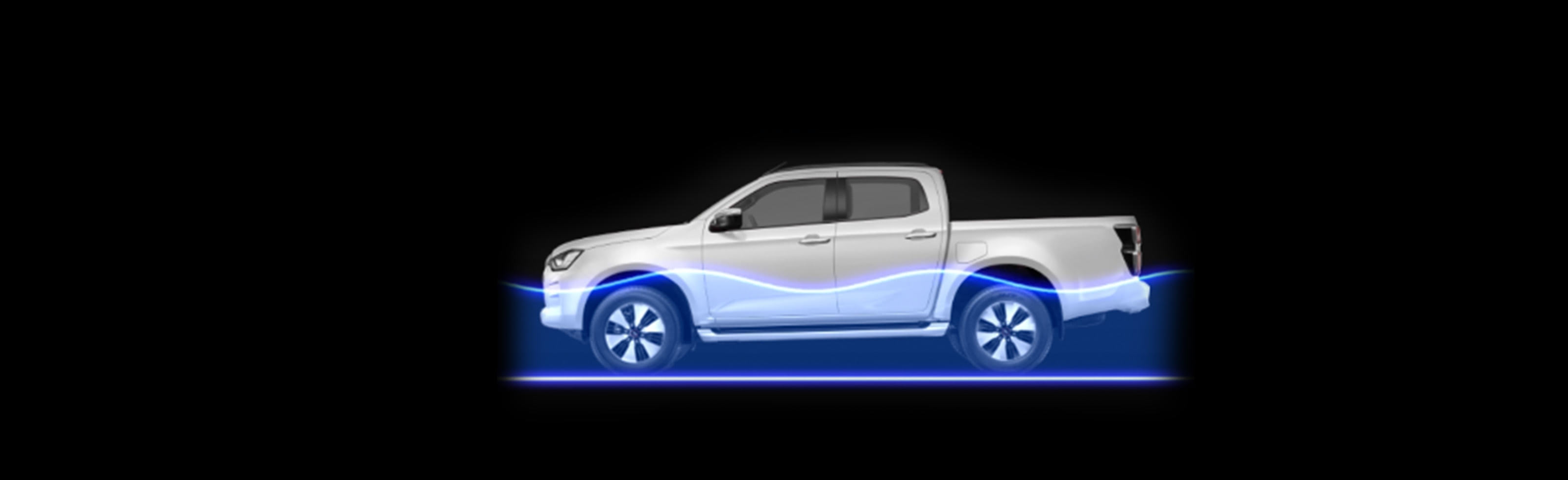

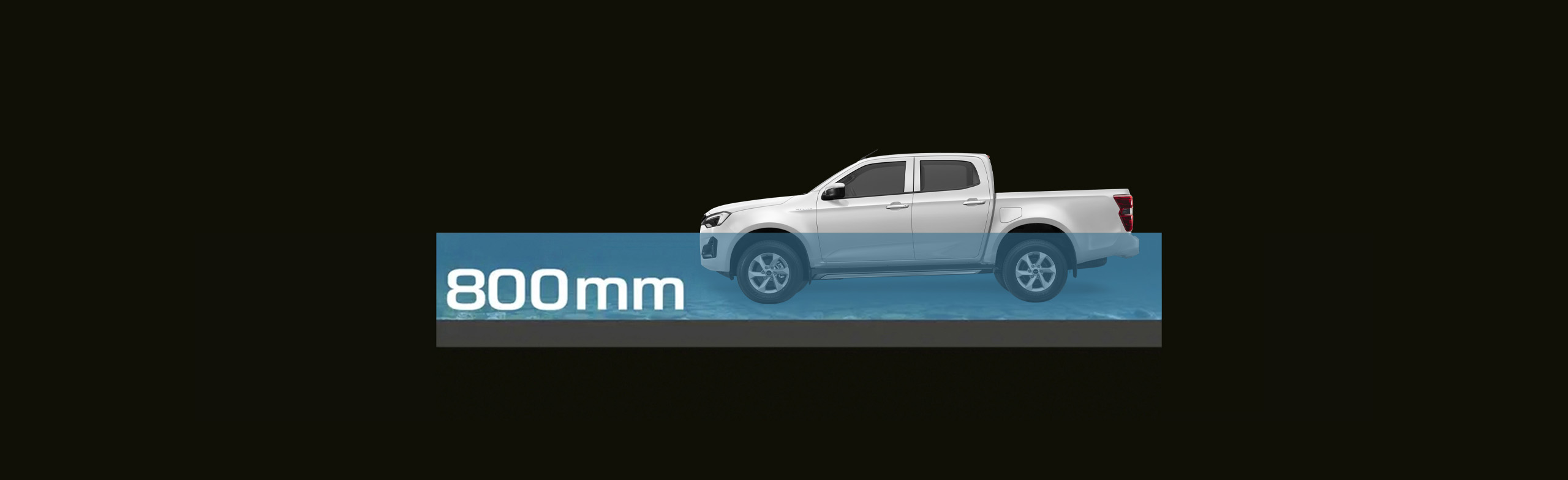

800 mm walding depth
exploreSafety
Qualified 5 STARS ASEAN NCAP SAFETY TEST
Electronic Stability Control
Hill Start Assist - Hill Descent Control
exploreSpecification
OVERVIEW
DIMENSION & WEIGHT
ENGINE
TRANSMISSION
CHASSIS
EXTERIOR
INTERIOR
CONVENIENCE
SAFETY
| Manufacturers Name | Isuzu Motors Co., (Thailand) LTD | |
| Manufacturers Address | 38 Kor. Moo 9, Poochaosamingprai rd., Samrong Tai, Phrapradaeng, Samutprakarn 10130, Thailand | |
| Origin | Thailand | |
| Certification number of approval (TA) | 22KOT/237937 | |
| Model code | TFR87JDL-TCPHVN | |
| Emission | Euro 5 | |
| Overall dimension (L x W x H) | mm | 5265 x 1870 x 1785 |
| Inside cargo dimension (L x W x H) | mm | 1495 x 1530 x 490 |
| Wheelbase | mm | 3125 |
| Front / Rear tread | mm | 1570/1570 |
| Ground clearance | mm | 235 |
| Min. turning radius | m | 6.1 |
| Kerb weight | kg | 1850 |
| Gross vehicle weight | kg | 2650 |
| Payload | kg | 475 |
| Fuel tank capacity | liters | 76 |
| Seating capacity | persons | 5 |
| Model | RZ4E – TC | |
| Type | In-line 4 cylinders, Diesel 1.9L, Intercooler VGS Turbo, Common Rail |
|
| Displacement | cc | 1898 |
| Max. Power | PS (kW)/rpm | 150(110)/3600 |
| Max. Torque | Nm/rpm | 350/1800~2600 |
| Drive Configuration | 4×2 (Rear) | |
| Generator | 12V-90A | |
| Emission Standard | EURO 5 |
| Type | Automatic transmission 6 – speed | |
| Free wheel hub | – |
| Suspension | Front | Independent, Double Wishbone with Coil Spring |
| Rear | Leaf spring | |

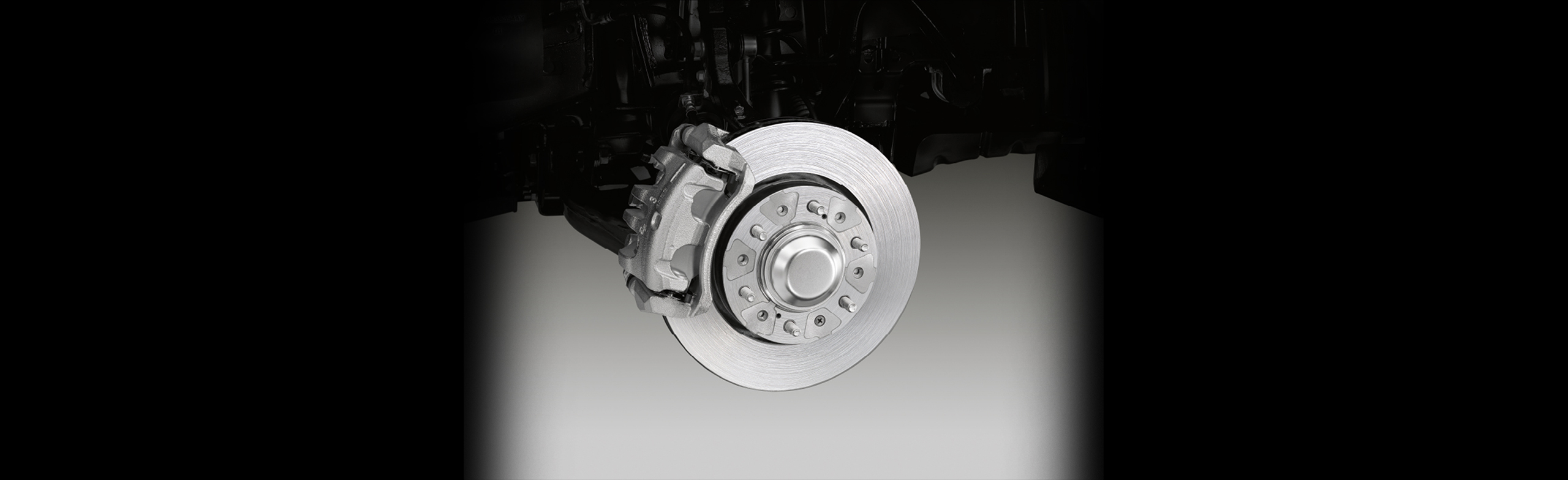

| Brake system | Front | Ventilated Disc |
| Rear | Drum | |
| Assisted steering type | Hydraulic | |
| Tire | 255/65R17 | |

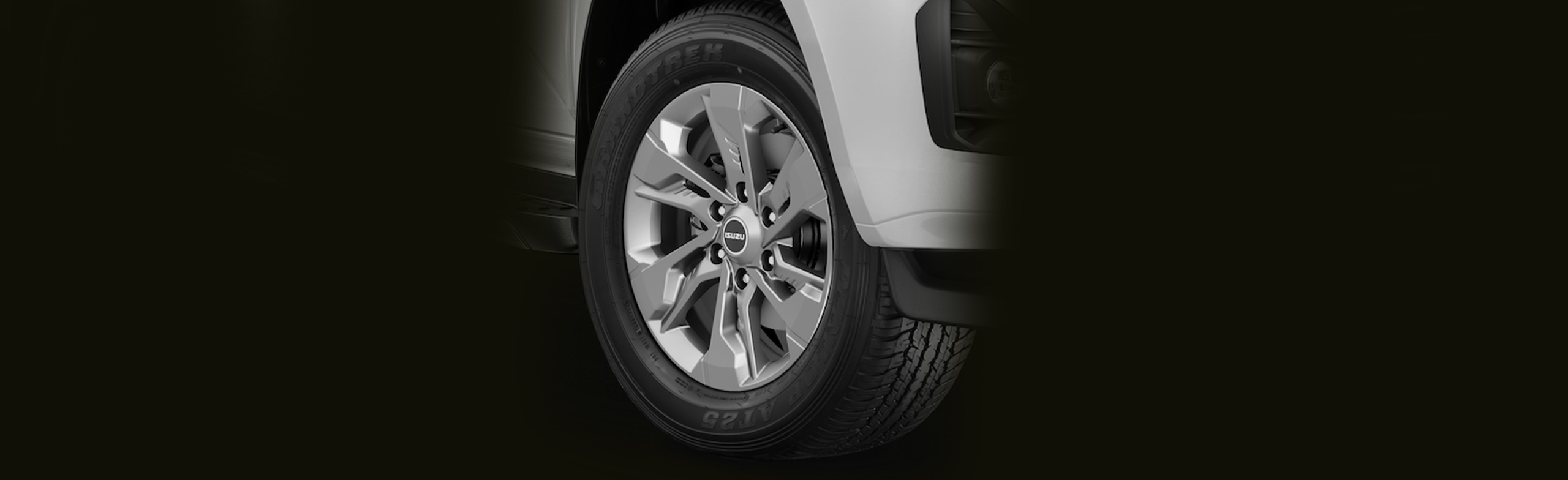

| Wheel | Alloy wheel – Silver | |

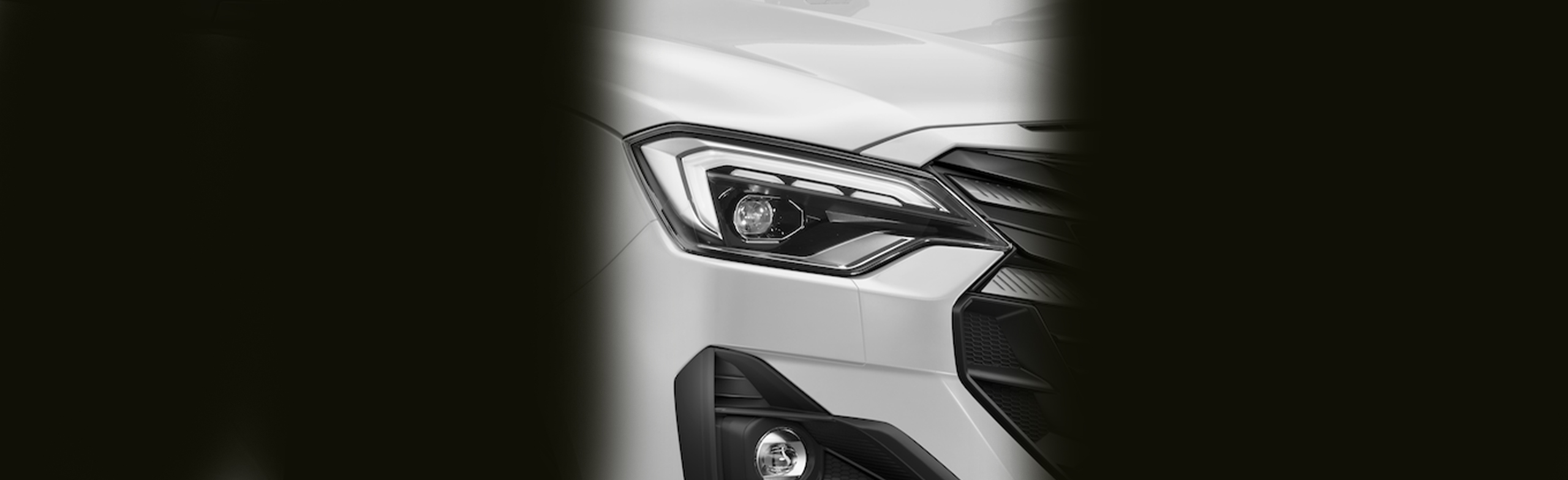

| Head lamp | BI-LED projector (manual leveling) with LED DRL |

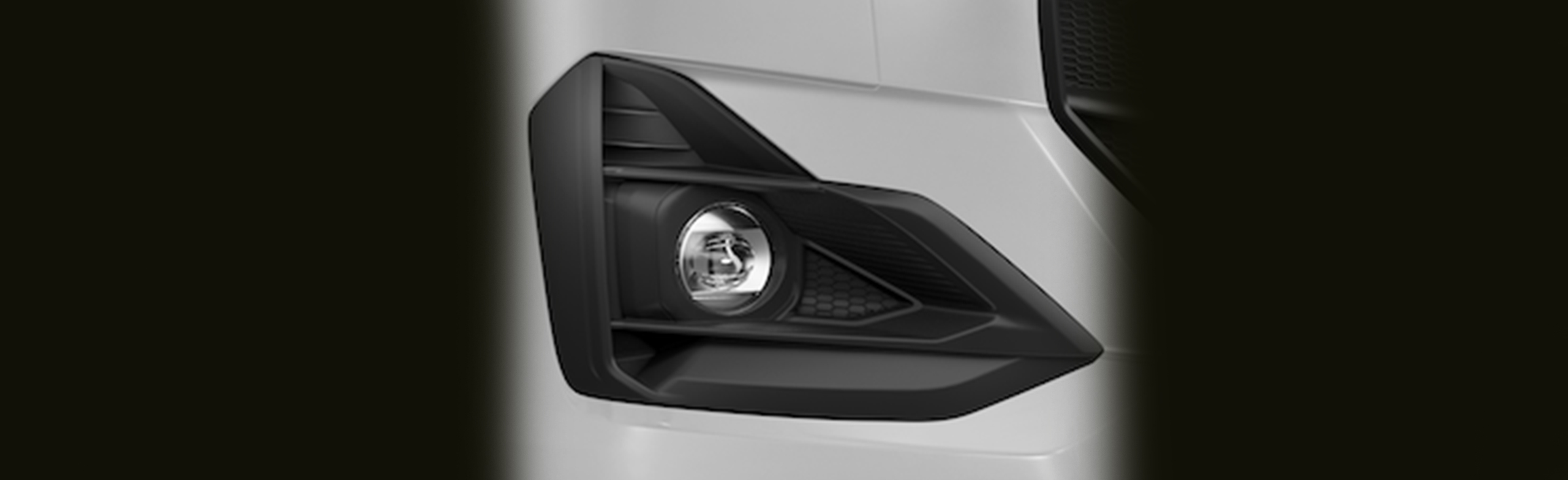

| Fog lamp | Halogen |
| Outside door handle grip | Titanium silver |
| Outside door mirror | Power adjustment, manual folding integrated signal lamp |
| Antenna | Center roof type |
| Tail gate handle | Titanium silver |
| Side step | With |
| Rear bumper | Integrated two steps |

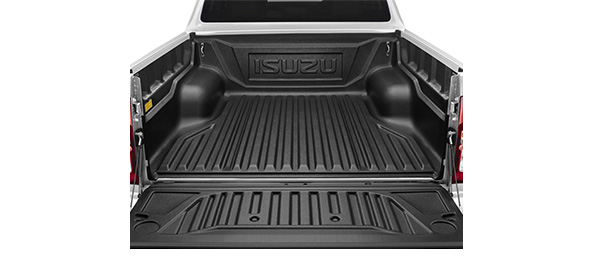

| Bed liner | With |
| Steering wheel | Urathane wrapped & control switches | |
| Top of meter cluster | PVC | |
| Meter panel | Electroluminscent instrument with MID, maintenance reminder | |
| Seat | Material | Cloth (High grade) |
| 1st row | Manual adjustment | |
| 2nd row | 60:40 fold-down, central arm rest | |
| Door trim | PVC soft pad surface at door arm rest | |
| Side air vent frame | Silver | |
| Window switch bezel | Matte black | |
| Center console lid | PVC | |

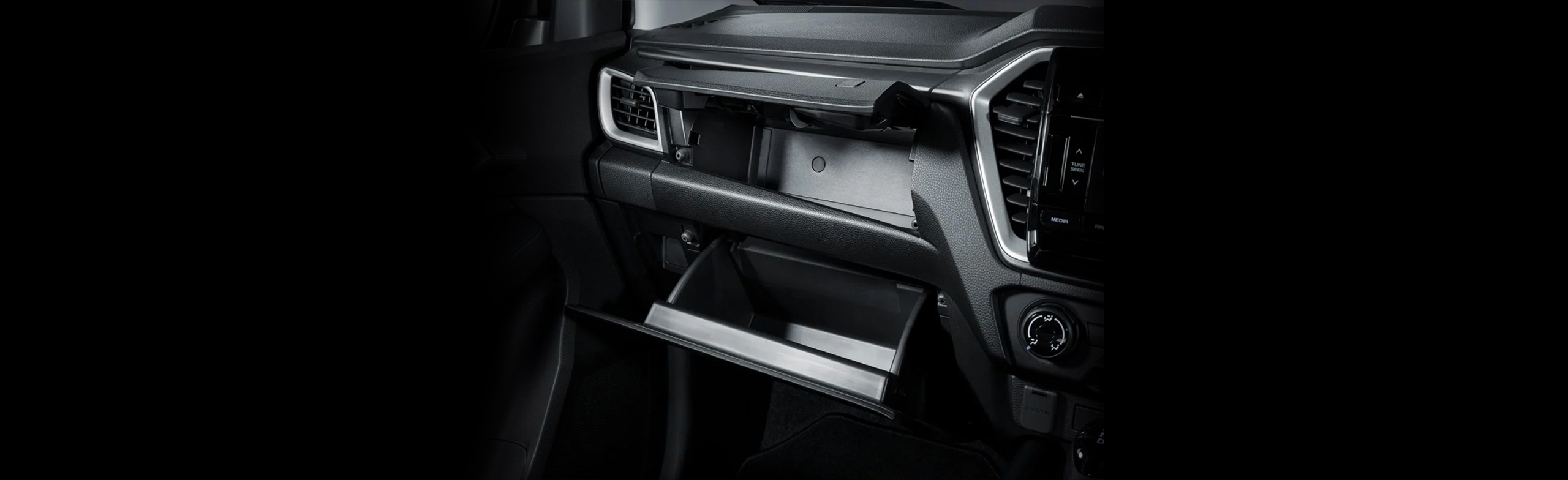

| Utility box lid | PVC | |
| Inside door lever & lock knob | Silver paint & Black | |
| Follow me home | With |

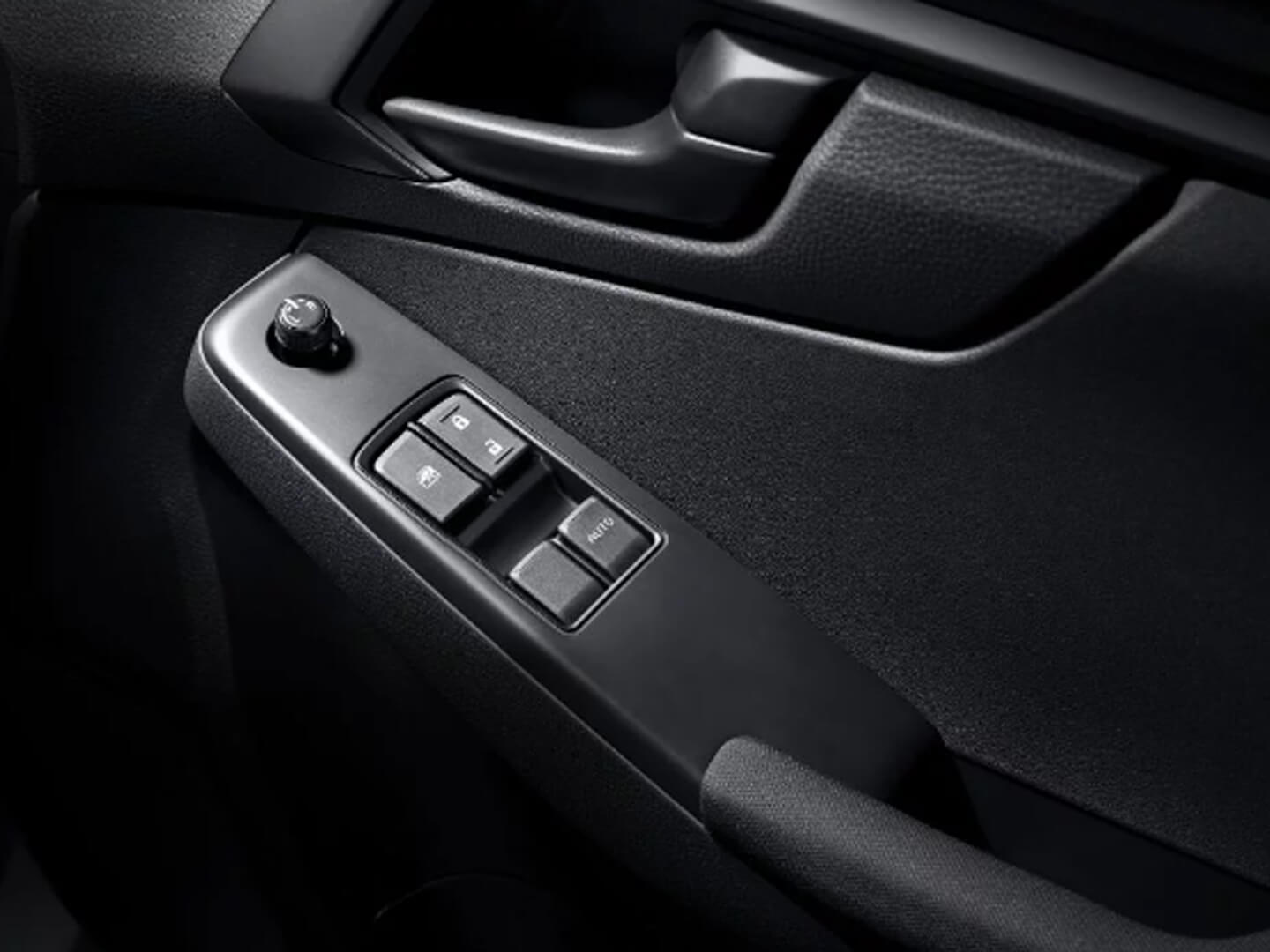

| Power window | With ( auto up & down with jam protection on driver side) |
| Air conditioner | Manual |

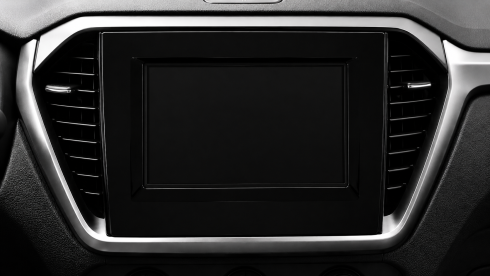

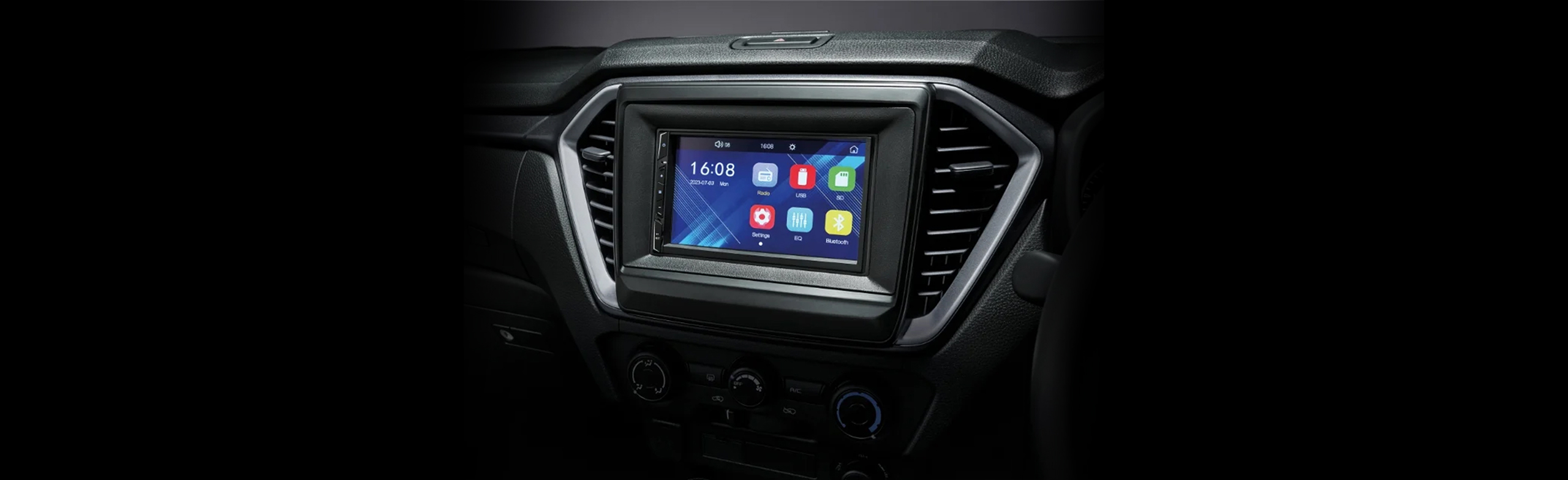

| Entertainment system | 7 inch touch screen, Bluetooth |
| Number of speakers | 4 |
| USB ports | 02 x 5V-21.A |
| Power outlet | 12V – 120W |

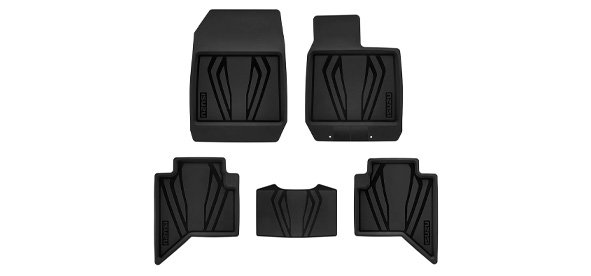

| Carpet floor met | With |

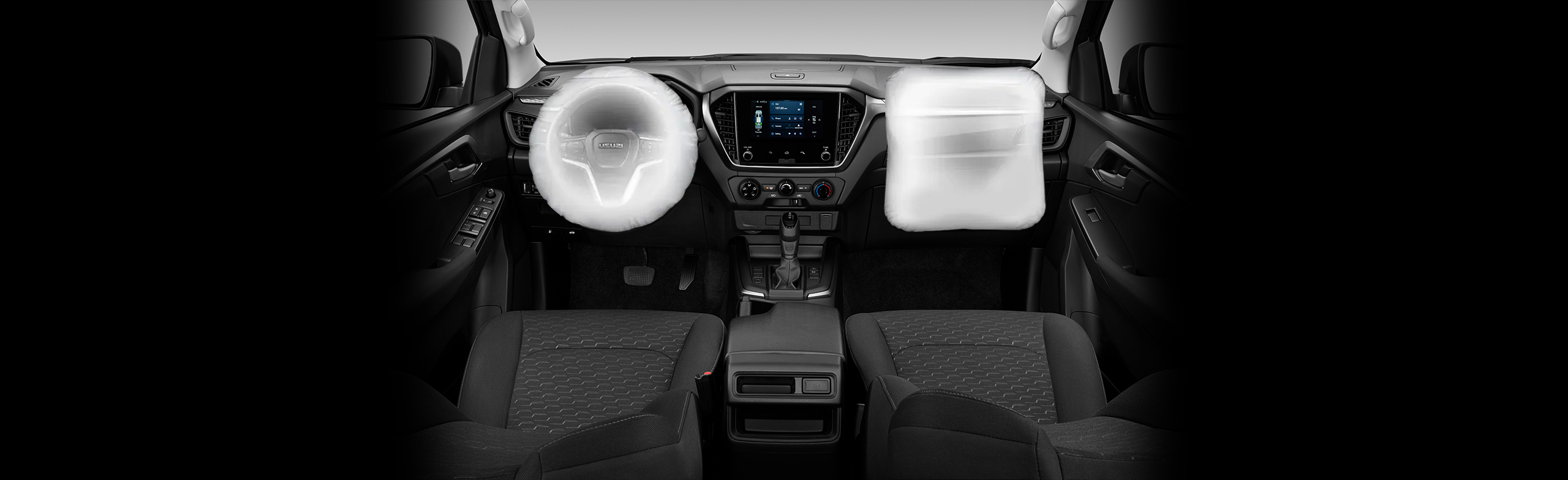

| Airbag | 2 | |
| Anti-block Brake System (ABS) | With | |
| Electronic Brakeforce Distribution (EBD) | With | |
| Brake Assist (BA) | With | |
| Electronic Stability Control (ESC) | With | |
| Traction Control System (TCS) | With | |
| Hill Start Assist (HSA) | With | |
| Hill Descent Control (HDC) | With | |
| Cruise Control | With | |
| Brake Override System (BOS) | With | |
| Seat belt | 1st row | ELR x 2 with pretensioner & load limiter |
| 2nd row | ELR x 3 | |
| Central door lock | With | |
| Auto door lock with speed sensing | With | |
| Power release lock door when airbag activate | With | |
| Child-proof door lock | With | |
