360 VIEW
Those specification & photos would be able to change without notice and may vary from actual ones
Suggested retail price
870.000.000 vnđ
Price is included VAT
exploreExterior

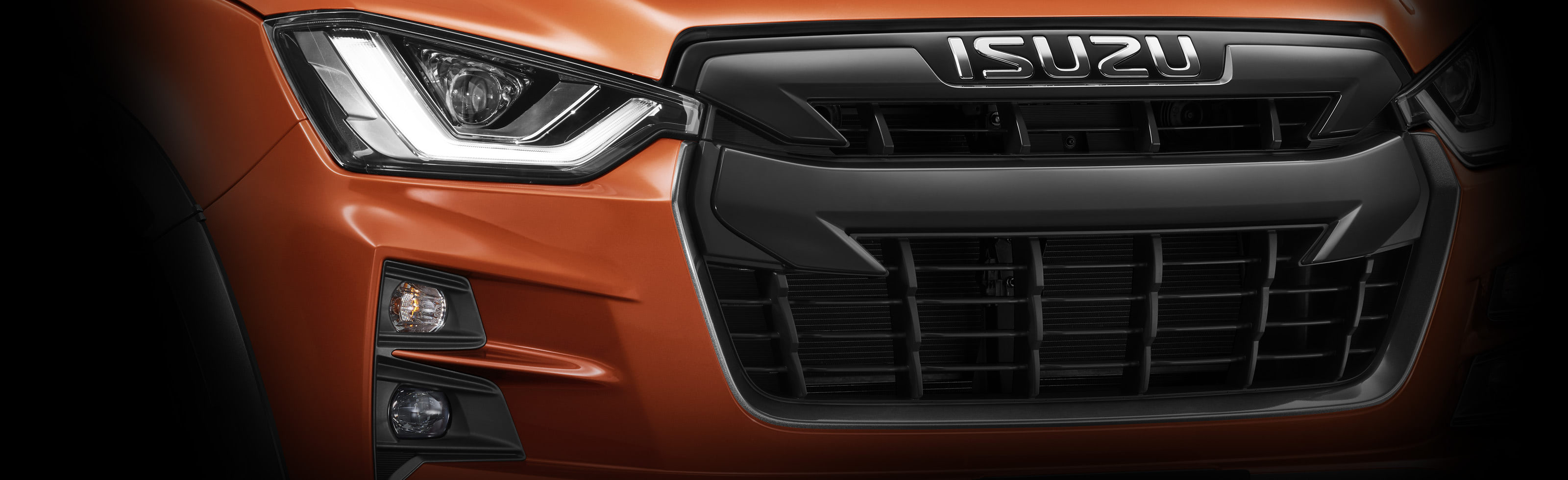

New mighty radiator grill with LED headlamp

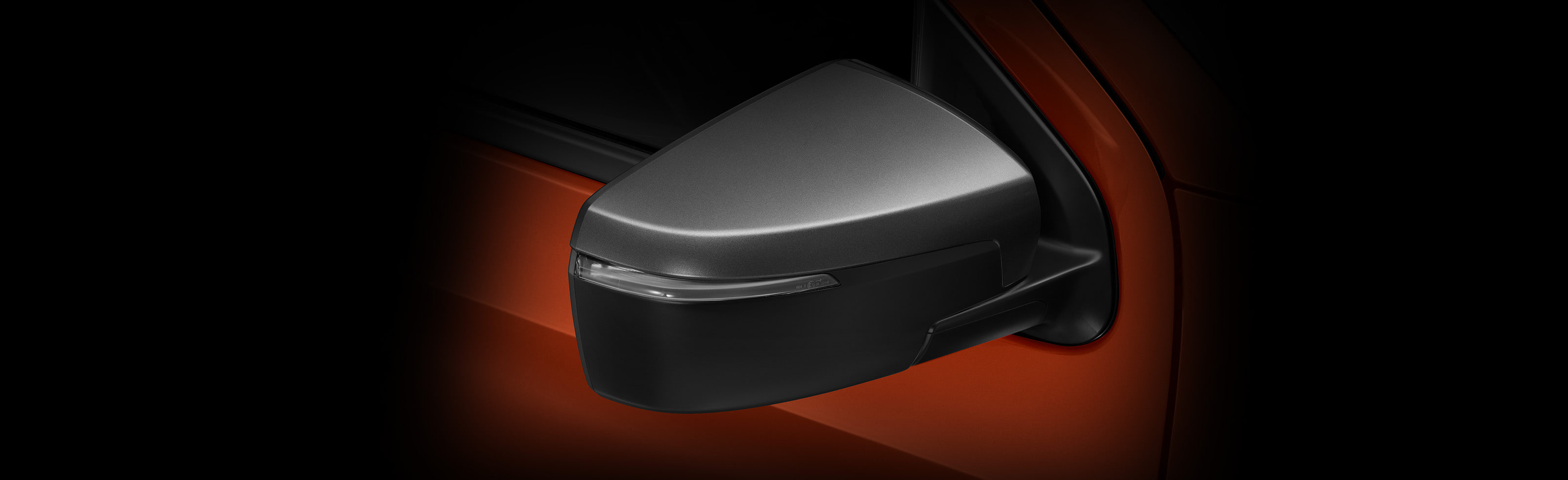

Rear view mirror with LED turn signal lamp

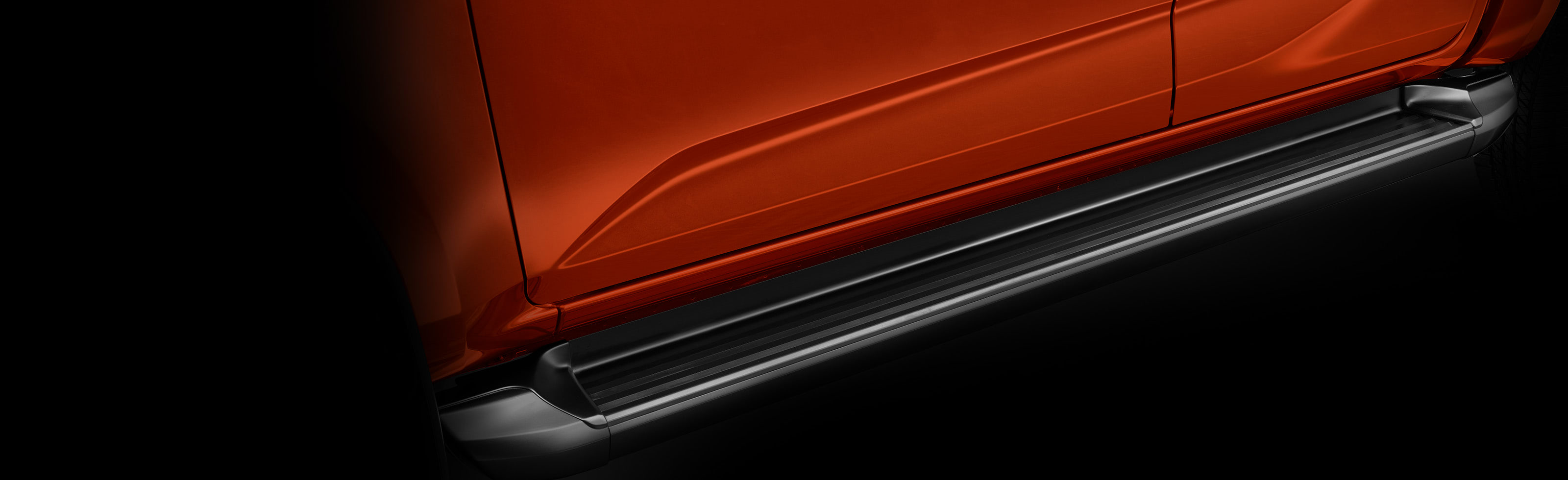

Larger side step

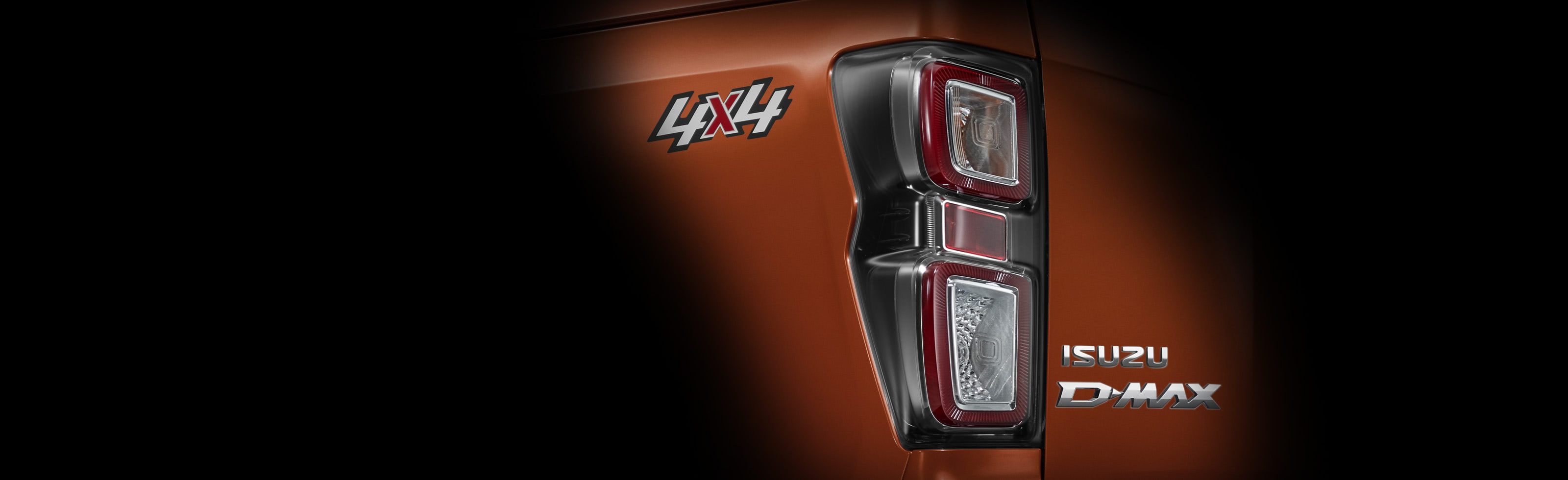

New rear LED combination lamp

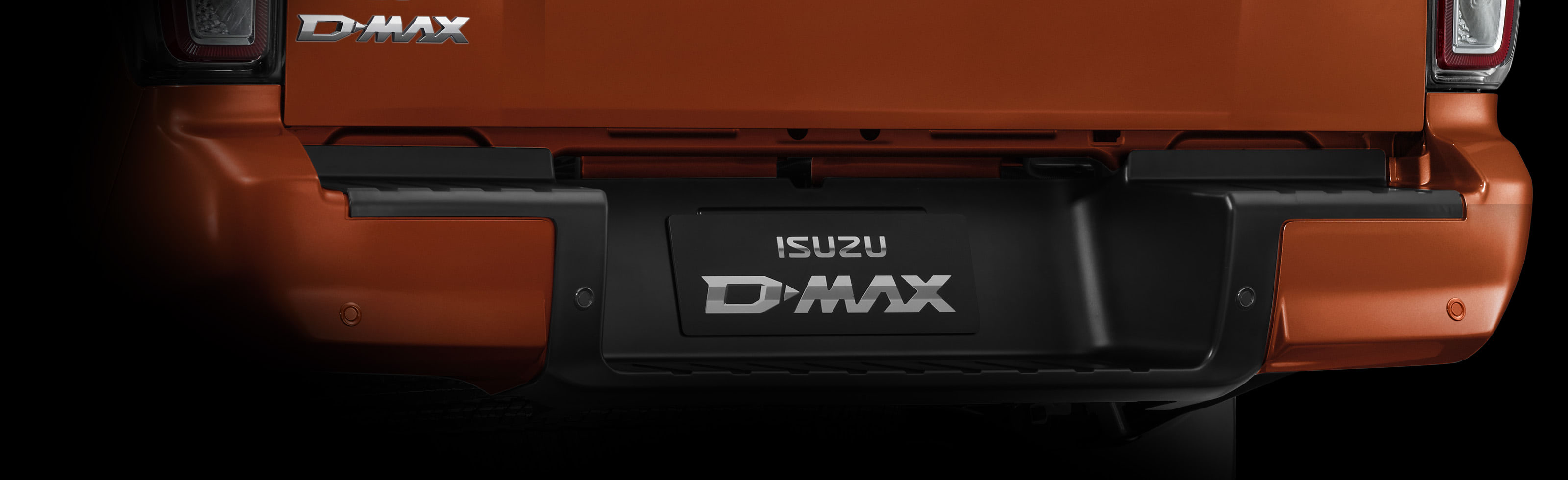

Rear bumper integrated two steps

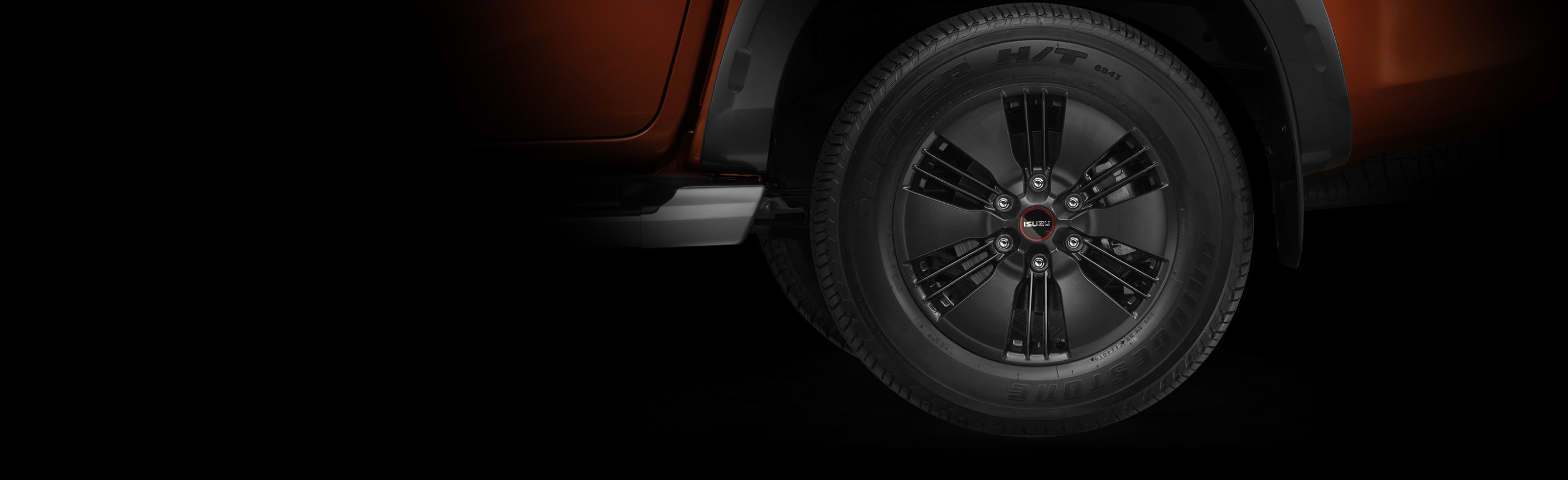

18 inch sporty design wheel
exploreInterior

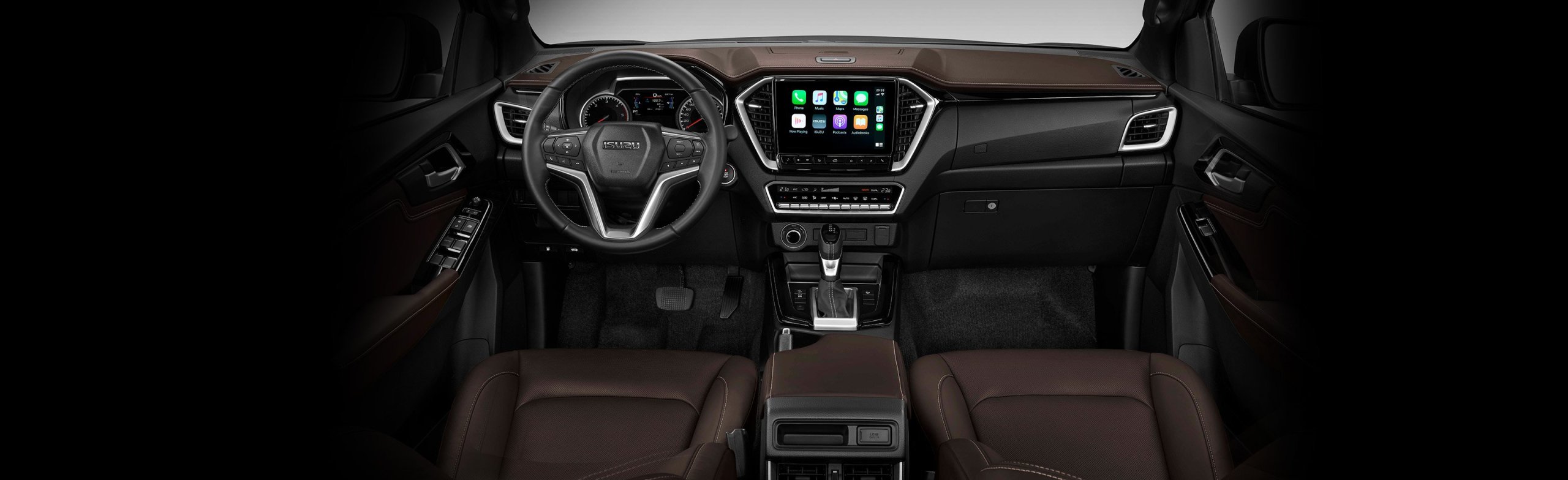

Universal design interior

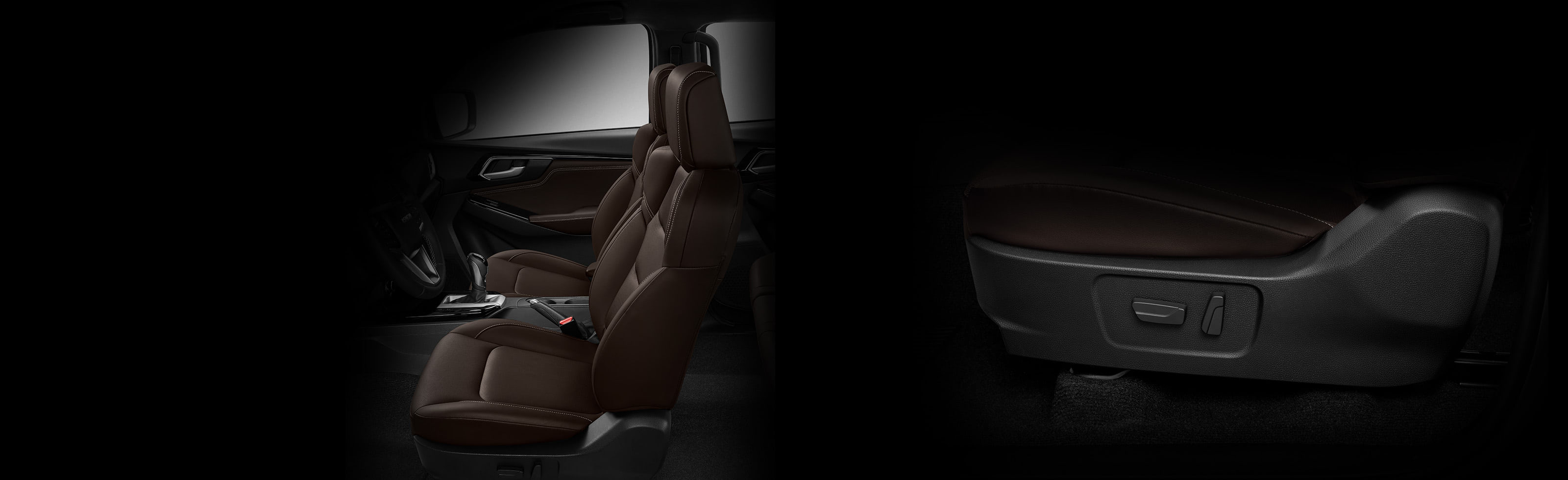

Leather wrapped 08-ways power adjustment on driver seat

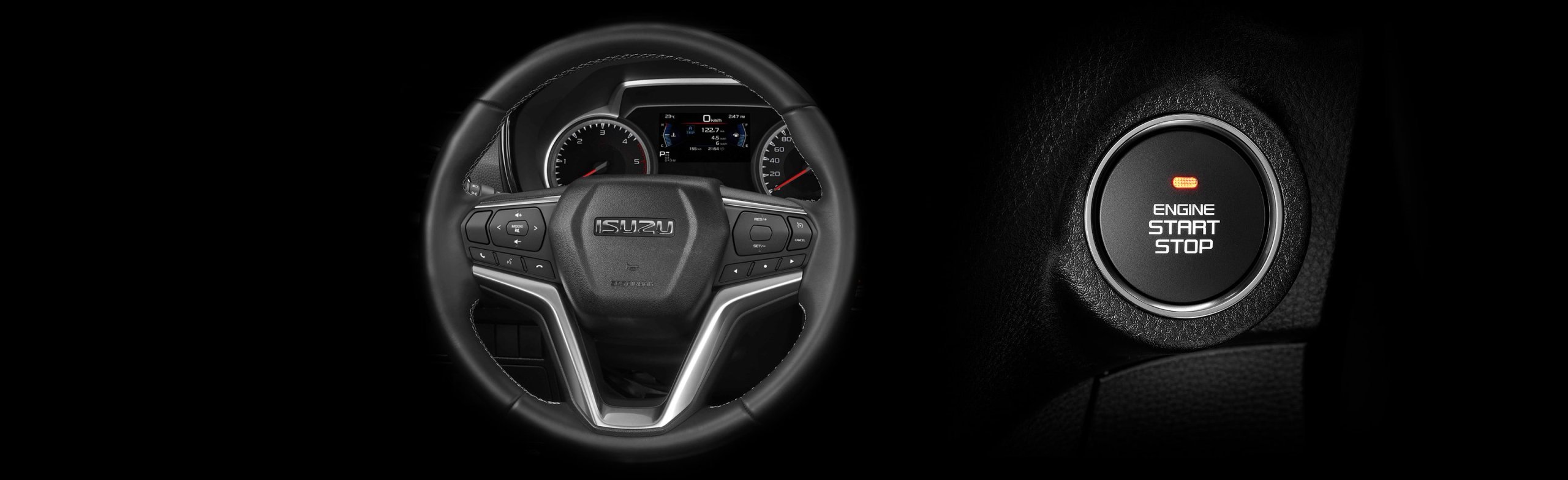

Leather wrapped steering wheel, audio switches

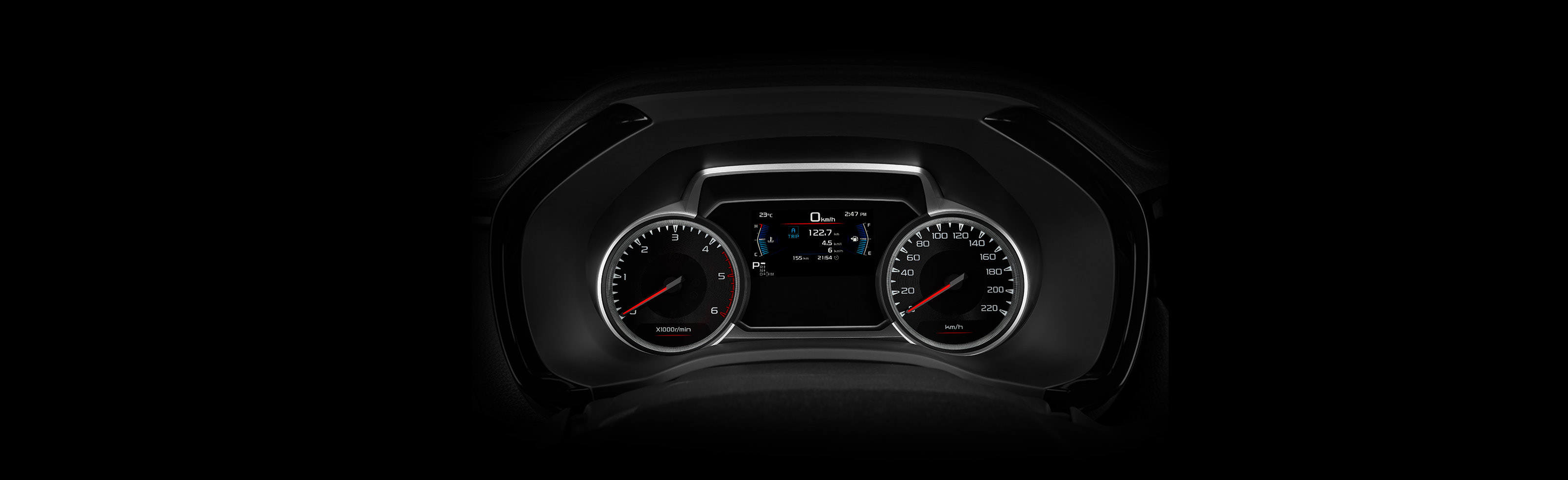

New 4.2 inch Multi Information Display

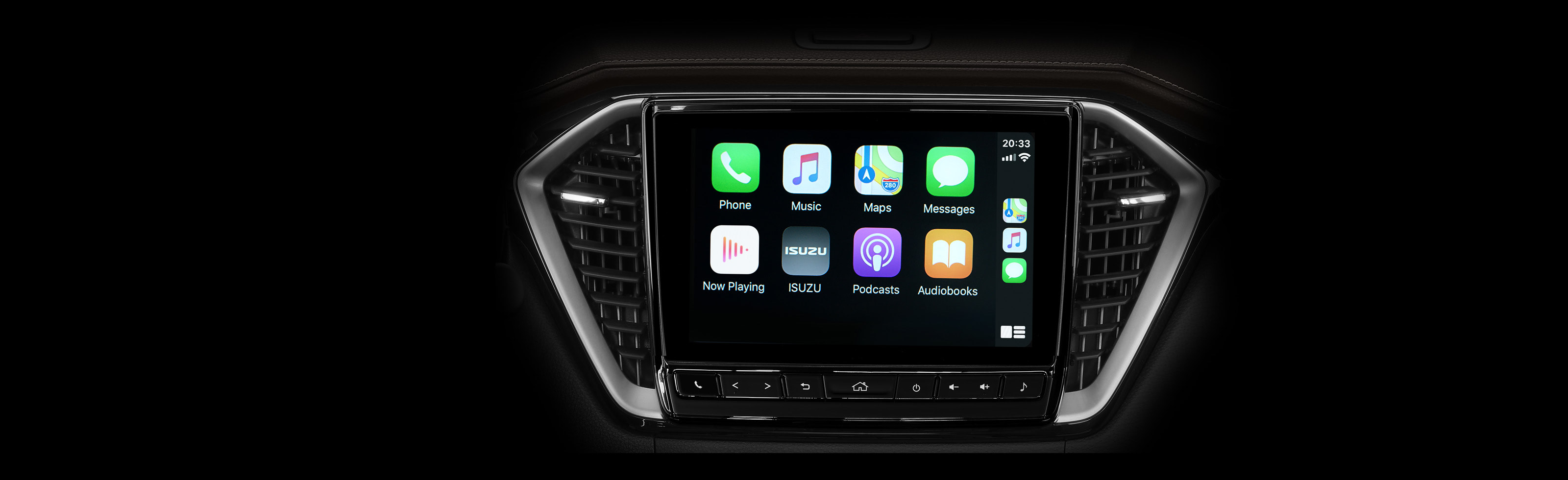

9 inch touch screen, Bluetooth, Apple Car Play, Android Auto

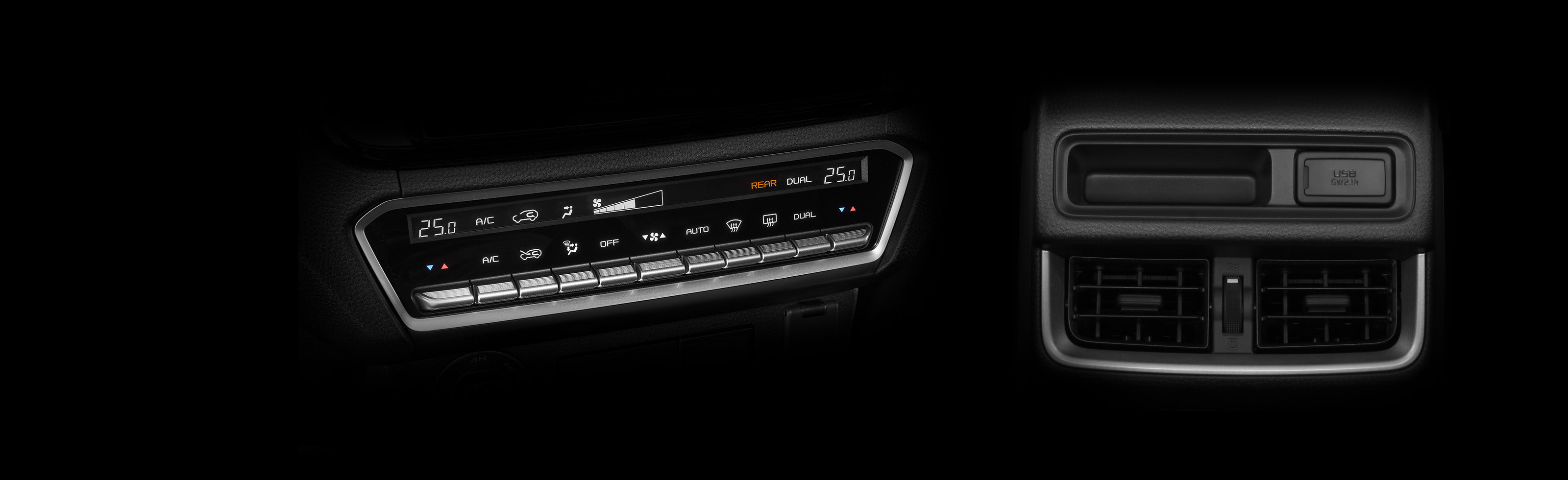

Auto dual zone air conditioner, rear vent

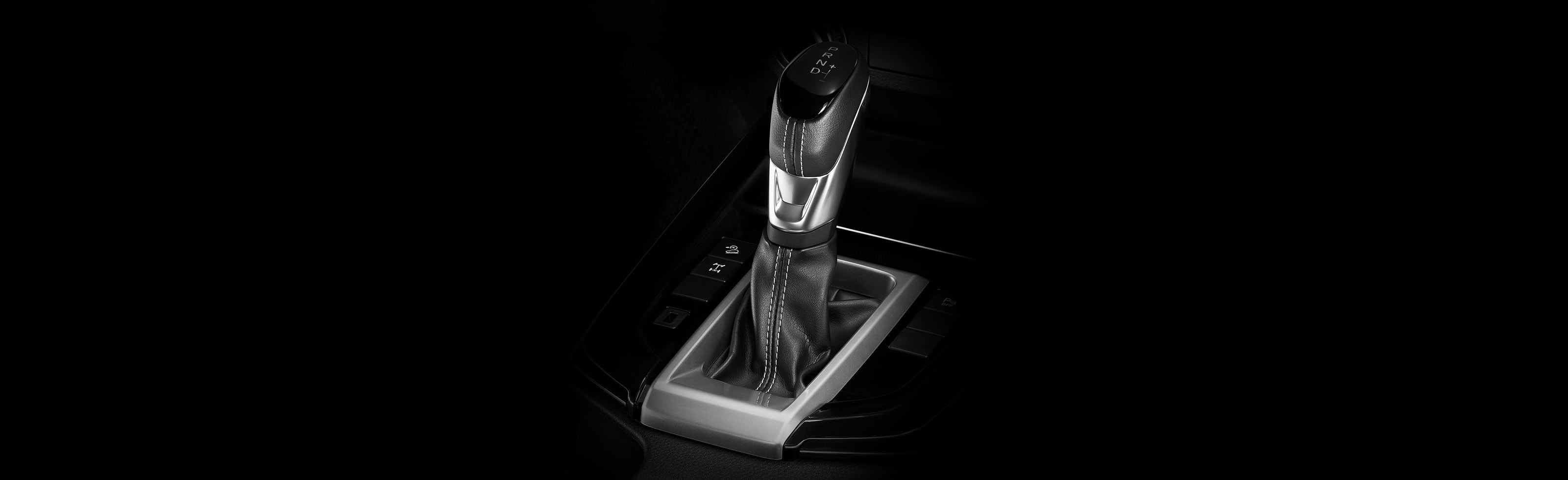

Sporty automatic transmission gear shift

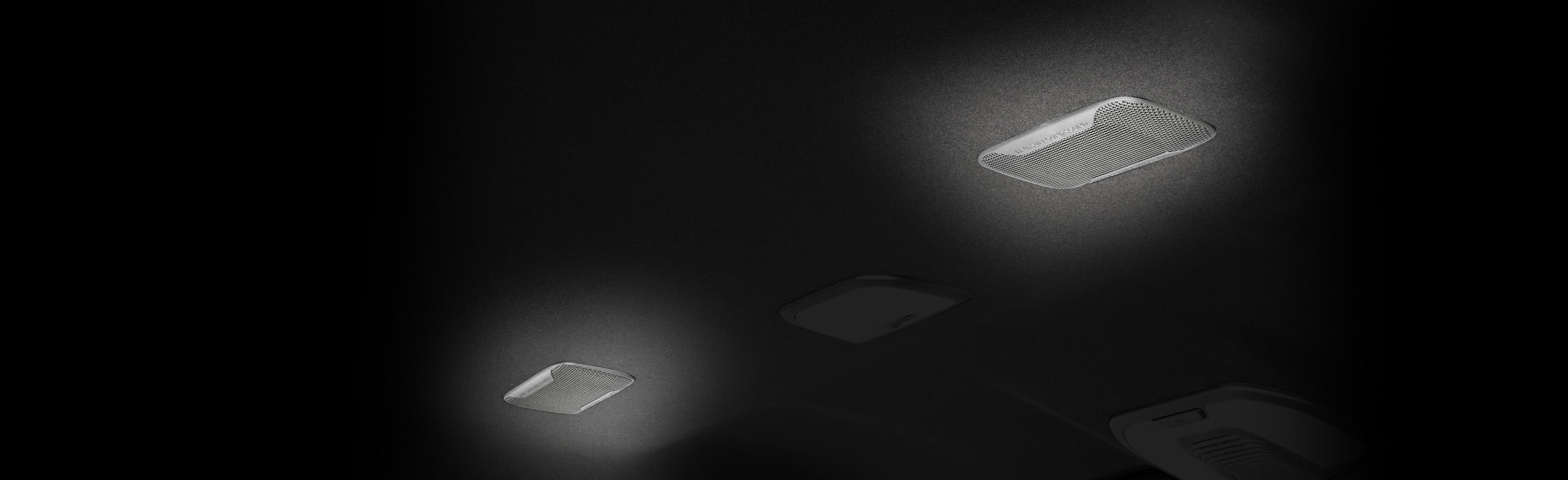

Surround speakers
explorePerformance

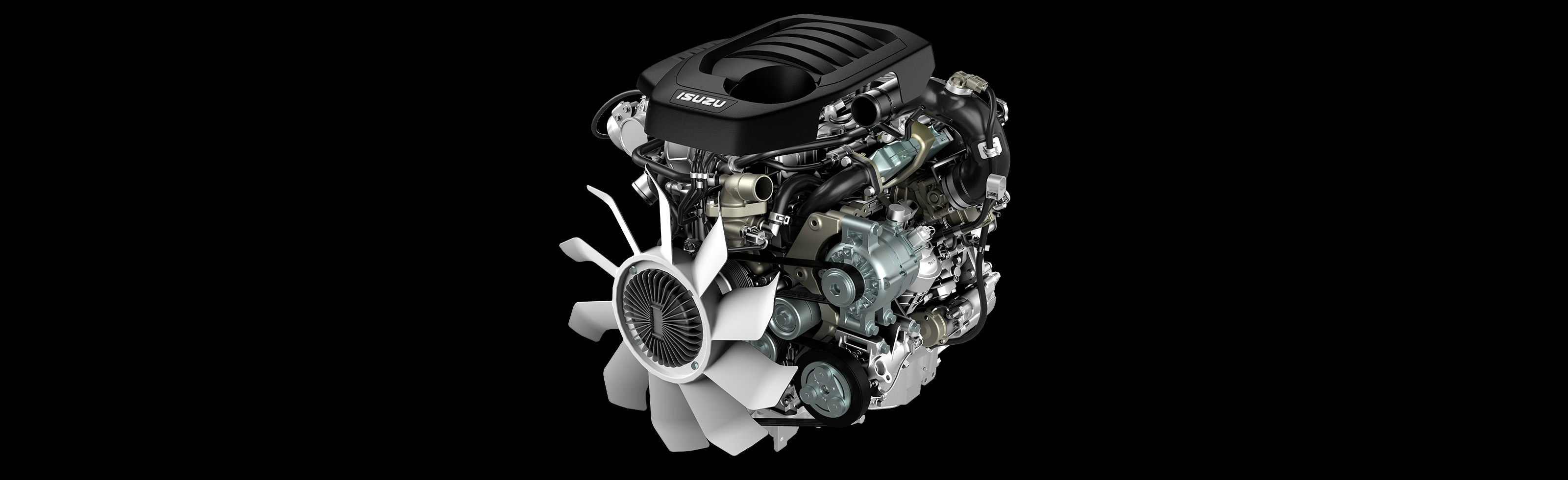

1.9L diesel engine with high fuel economy and durability performance

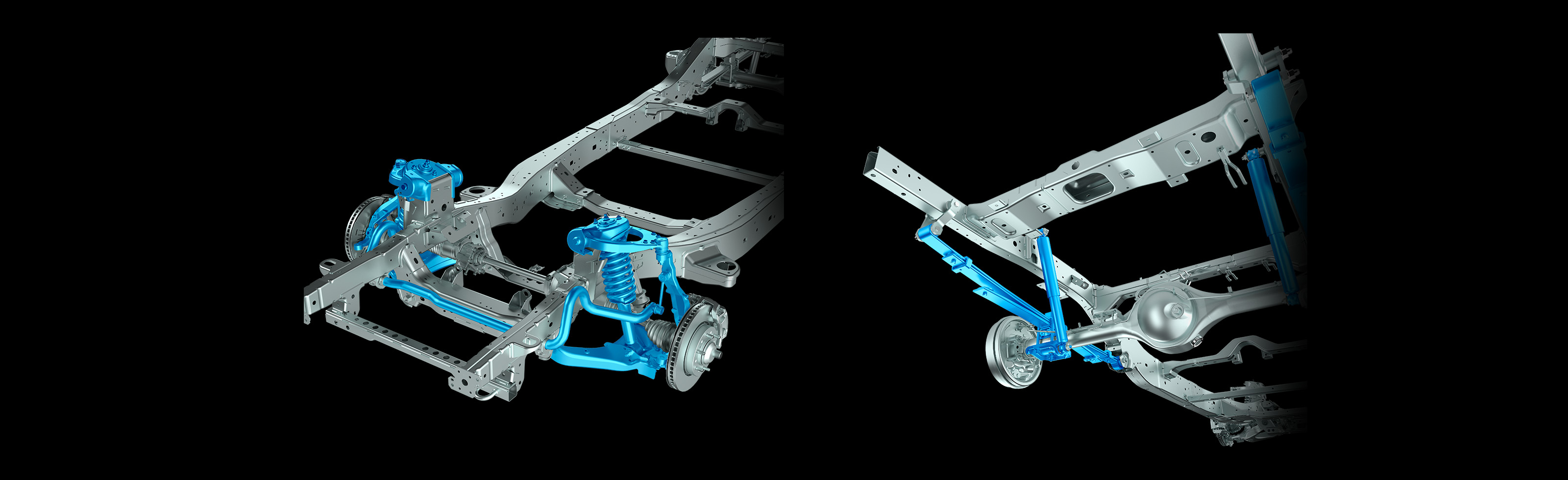

Comfort suspension

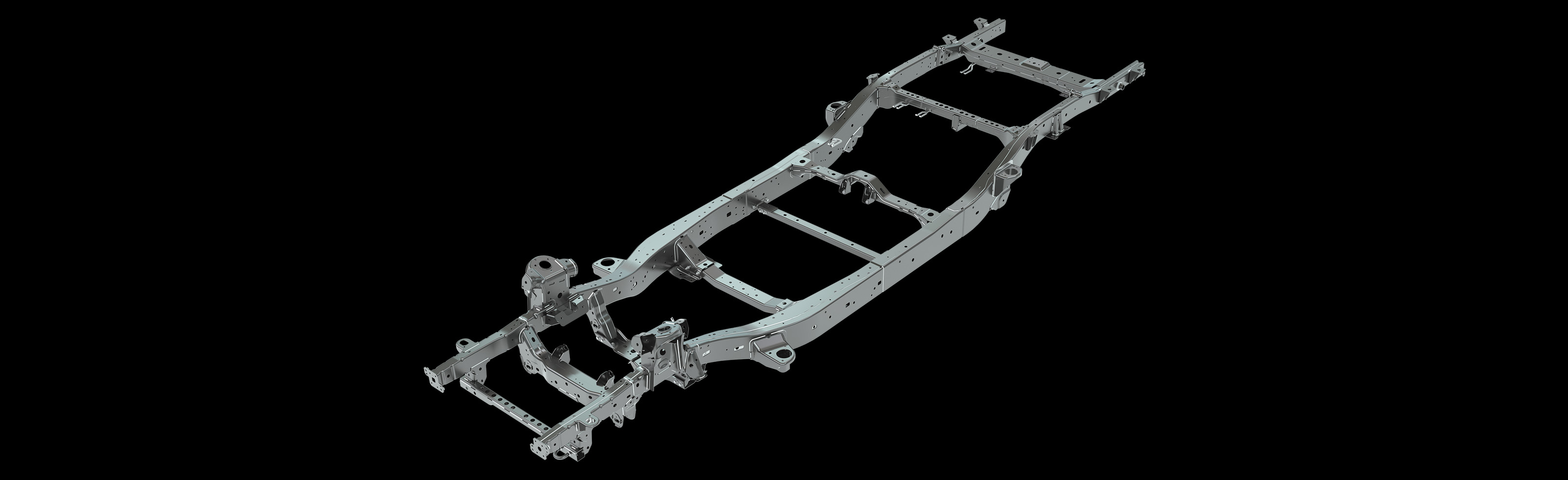

Stronger chassis

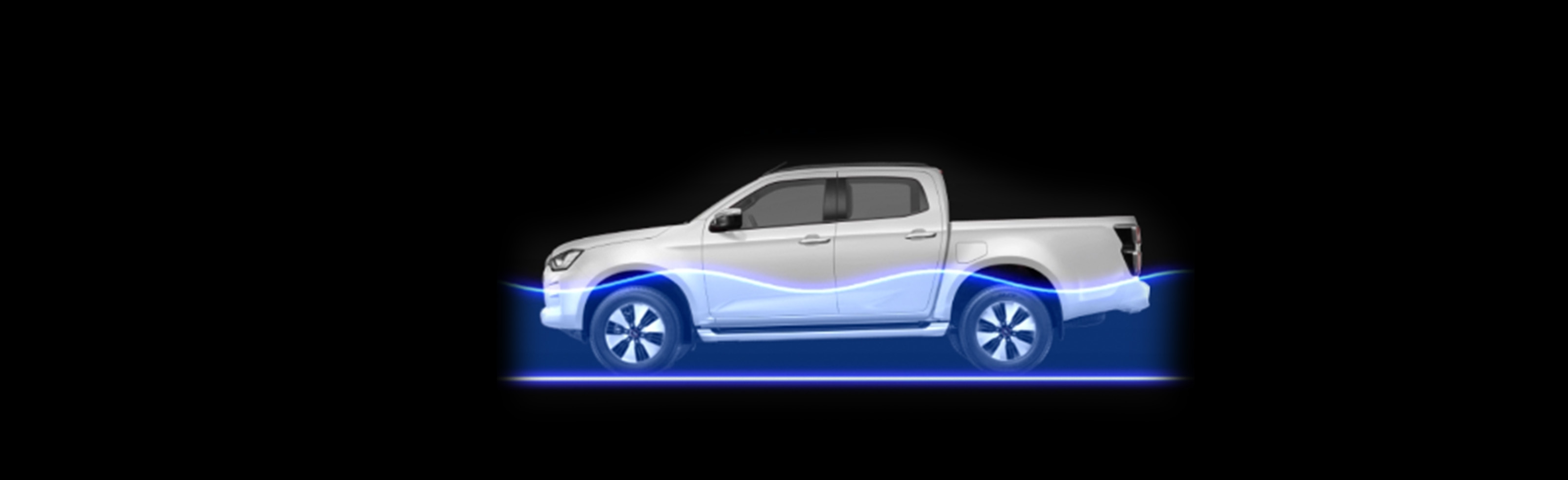

800 mm walding depth
exploreSafety
Qualified 5 STARS ASEAN NCAP SAFETY TEST

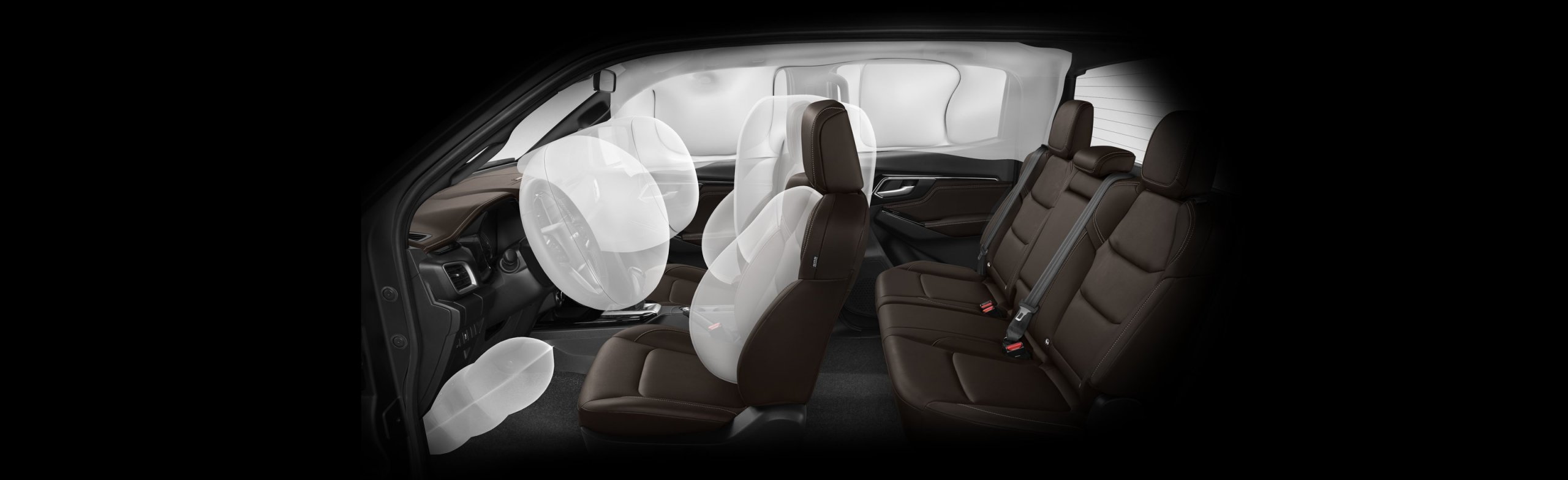

Maximize safety with 7 airbags

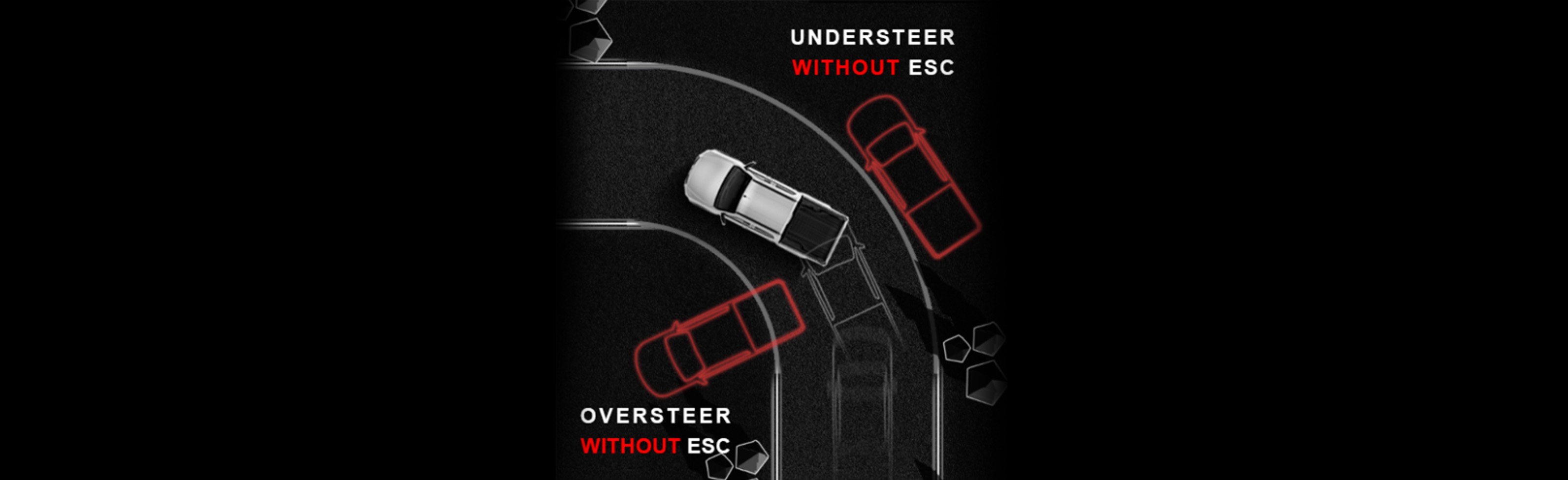

Electronic Stability Control

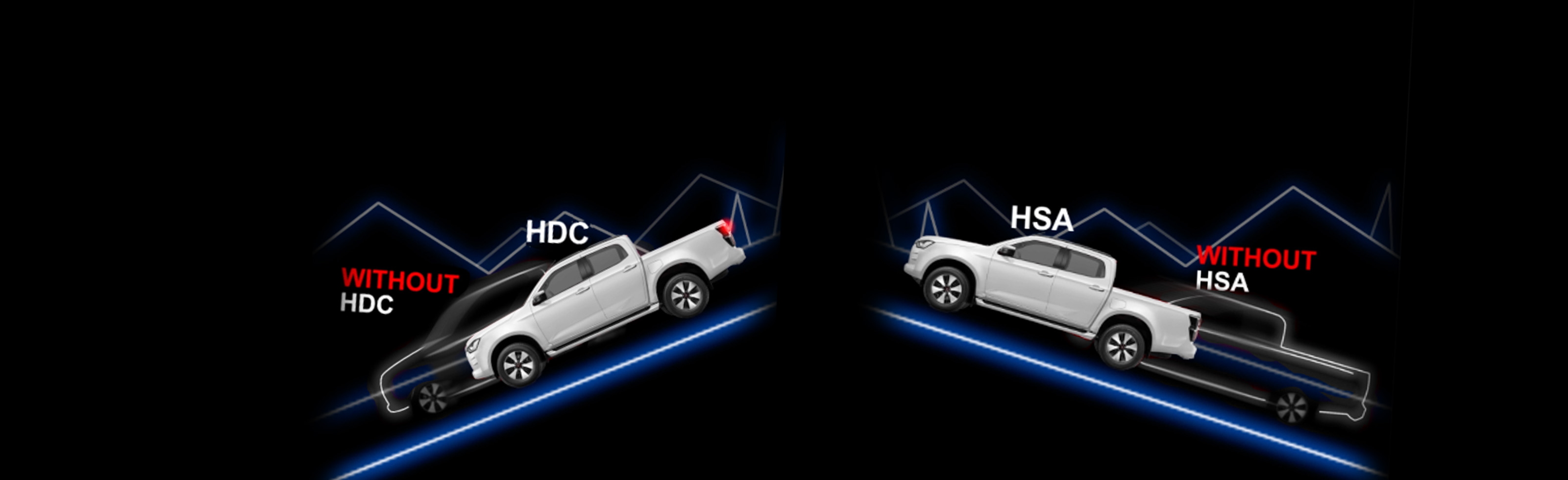

Hill Start Assist - Hill Descent Control

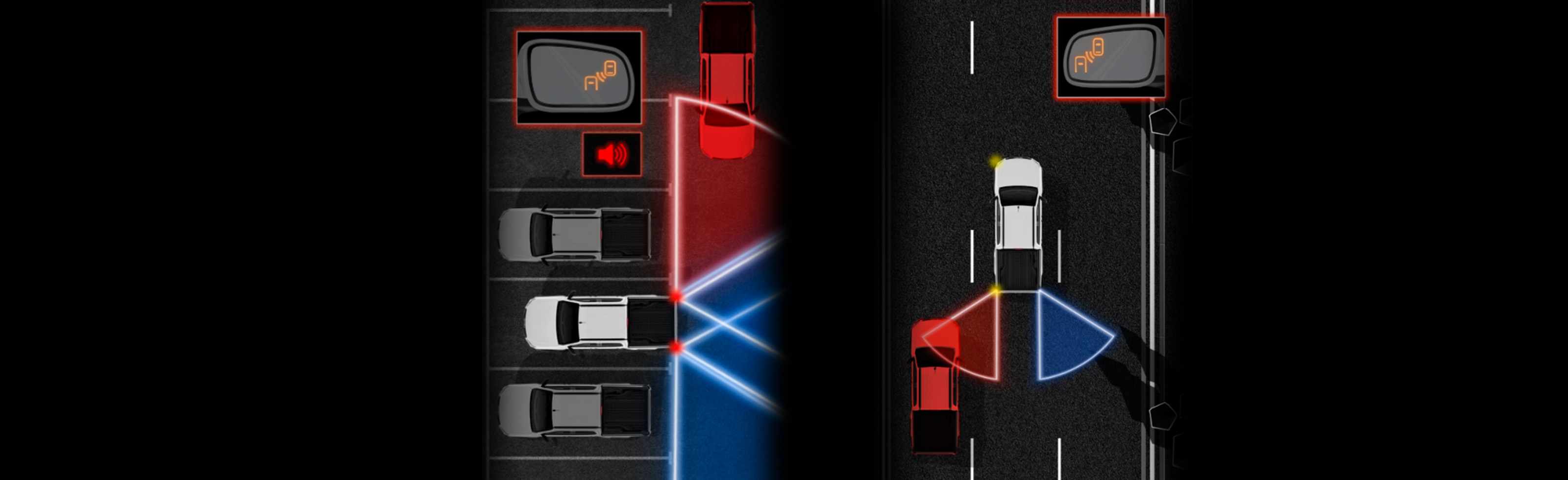

Rear Cross Traffic Alert - Blind Spot Monitor

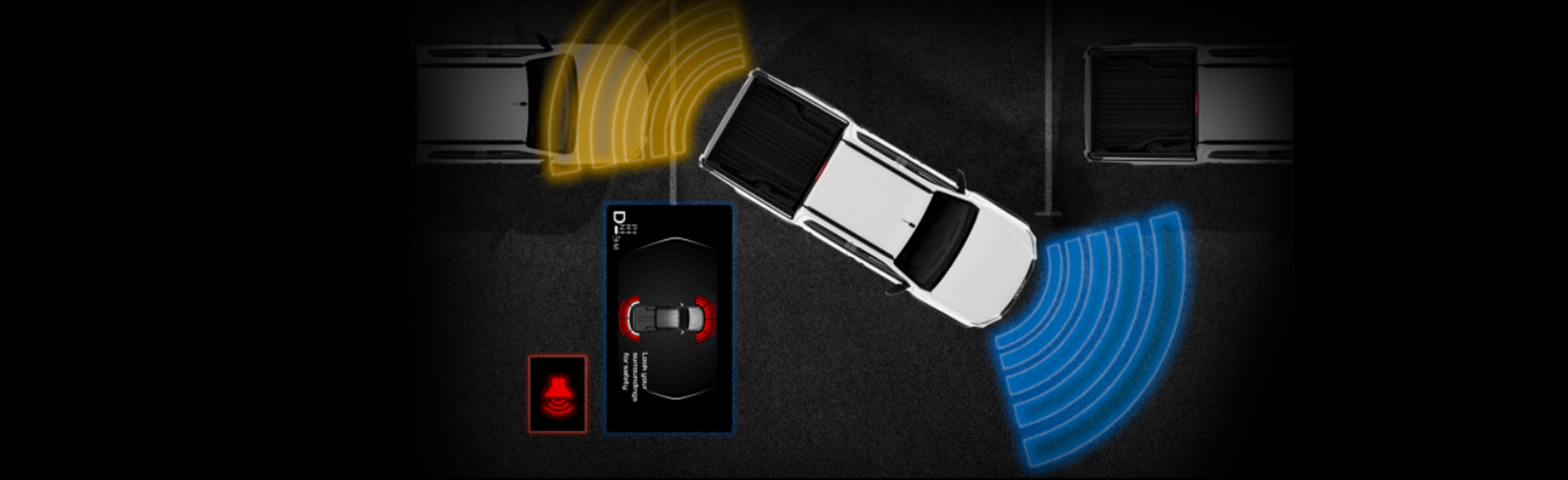

Parking aid system
exploreSpecification
OVERVIEW
DIMENSION & WEIGHT
ENGINE
TRANSMISSION
CHASSIS
EXTERIOR
INTERIOR
CONVENIENCE
SAFETY
| Manufacturers Name | Isuzu Motors Co., (Thailand) LTD | |
| Manufacturers Address | 38 Kor. Moo 9, Poochaosamingprai rd., Samrong Tai, Phrapradaeng, Samutprakarn 10130, Thailand | |
| Origin | Thailand | |
| Certification number of approval (TA) | 22KOT/238019 | |
| Model code | TFS87JDL-TEPHVN | |
| Emission | Euro 5 | |
| Overall dimension (L x W x H) | mm | 5265 x 1870 x 1790 |
| Inside cargo dimension (L x W x H) | mm | 1495 x 1530 x 490 |
| Wheelbase | mm | 3125 |
| Front / Rear tread | mm | 1570/1570 |
| Ground clearance | mm | 240 |
| Min. turning radius | m | 6.1 |
| Kerb weight | kg | 1955 |
| Gross vehicle weight | kg | 2730 |
| Payload | kg | 450 |
| Fuel tank capacity | liters | 76 |
| Seating capacity | persons | 05 |
| Model | RZ4E – TC | |
| Type | In-line 4 cylinders, Diesel 1.9L, Intercooler VGS Turbo, Common Rail | |
| Displacement | cc | 1898 |
| Max. Power | Ps (kW)/rpm | 150(110)/3600 |
| Max. Torque | Nm/rpm | 350/1800~2600 |
| Drive Configuration | 4×4 | |
| Generator | 12V-90A | |
| Emission Standard | EURO 5 |
| Type | Automatic transmission 6 – speed |
| Free wheel hubs | Shift on the fly |
| Rear differential lock | With |
| Suspension | Front | Independent, Double Wishbone with Coil Spring |
| Rear | Leaf spring | |
| Brake system | Front | Ventilated Disc |
| Rear | Drum | |
| Assisted steering type | Hydraulic | |
| Tire | 265/60R18 | |
| Wheel | Alloy wheel – Mat dark gray met | |
| Head lamp | BI-LED projector (auto leveling) with LED DRL |
| Fog lamp | LED |
| Outside door handle grip | Dark gray met |
| Outside door mirror | Power folding & adjustment, integrated signal lamp |
| Antenna | Center roof type |
| Tail gate handle | Dark gray met |
| Side step | With |
| Rear bumper | Integrated two steps |
| Bed liner | With |
| Steering wheel | Leather wrapped & control switches | |
| Top of meter cluster | Leather (Brown) | |
| Meter panel | Electroluminscent instrument with MID, maintenance reminder | |
| Seat | Material | Leather (Brown) |
| 1st row | 8-ways power on driver side | |
| 2nd row | 60:40 fold-down, central arm rest | |
| Door trim | Leather pad surface at door arm rest | |
| Side air vent frame | Silver | |
| Window switch bezel | Gloss black garnish | |
| Center console lid | Leather (Brown) | |
| Utility box lid | Leather (Brown) | |
| Inside door lever & lock knob | Satin chrome paint & Black | |
| Follow me home | With |
| Smart key & Push start | With |
| Smart entry | With |
| Remote engine start | With |
| Power window | With (auto up & down with jam protection on driver side) |
| Air conditioner | Auto dual zone |
| Entertainment system | 9 inch touch screen, Bluetooth, Apple Car Play, Android Auto |
| Number of speakers | 08 |
| USB ports | 02 x 5V-21.A |
| Power outlet | 12V – 120W |
| Carpet floor met | With |
| Airbag | 7 | |
| Anti-block Brake System (ABS) | With | |
| Electronic Brakeforce Distribution (EBD) | With | |
| Brake Assist (BA) | With | |
| Electronic Stability Control (ESC) | With | |
| Traction Control System (TCS) | With | |
| Hill Start Assist (HSA) | With | |
| Hill Descent Control (HDC) | With | |
| Cruise Control | With | |
| Brake Override System (BOS) | With | |
| Blind Spot Monitor (BSM) | With | |
| Rear Cross Traffic Alert (RCTA) | With | |
| Parking Aid System (Front & Rear) | With | |
| Reverse Camera | With | |
| Rear radars | With | |
| Seat belt | 1st row | ELR x 2 with pretensioner & load limiter |
| 2nd row | ELR x 3 | |
| Central door lock | With | |
| Auto door lock with speed sensing | With | |
| Power release lock door when airbag activate | With | |
| Child-proof door lock | With | |
