OVERVIEW

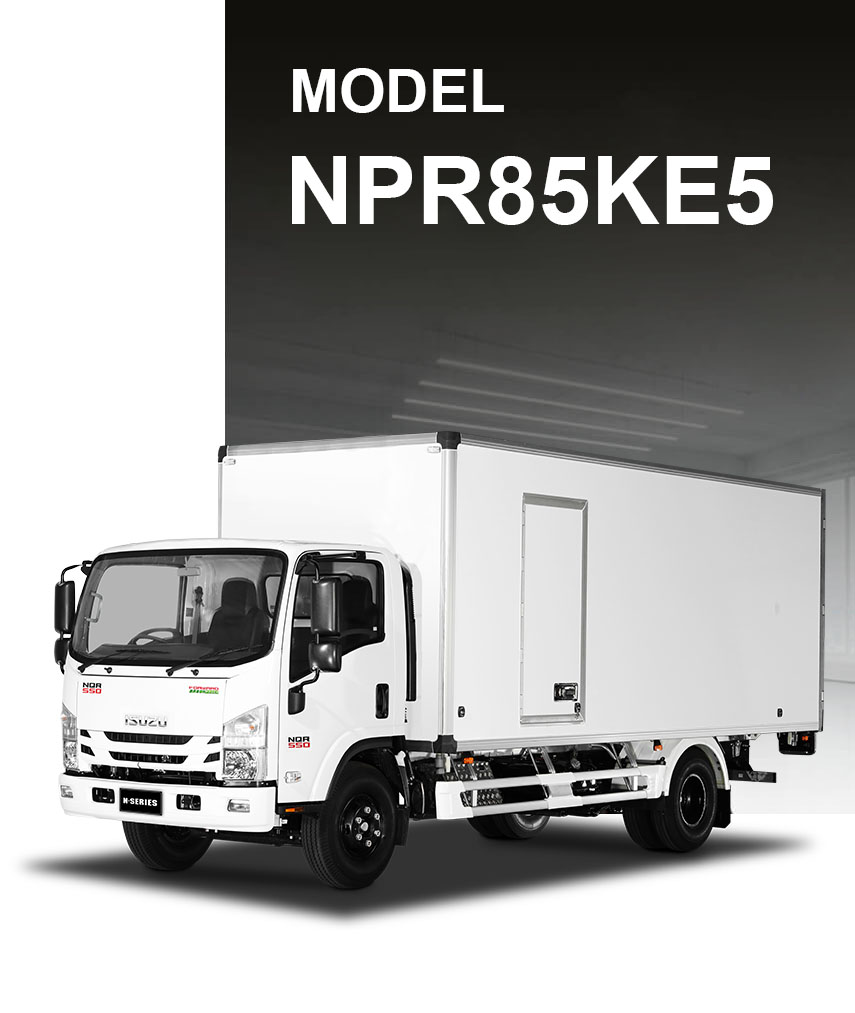

model Isuzu Truck - NPR85KE5

Gross Vehicle Weight 7,500 (KG)
Overall Dimension 6,680 x 2,120 x 2,305 (mm)
Max. Power 124(91) / 2,600(Ps(kW) / rpm)
Emission Standard EURO 5
Manufacturers Name Isuzu Vietnam Co., Ltd
Manufacturers Address 695 Quang Trung Street, Ward 8, Go Vap District, Ho Chi Minh City
Origin Vietnam

* * Applied for cabin chassis only. (Price is included VAT)

ENGINE

COMMON RAIL EURO 5 ENGINE

HI-PRESSURE COMMON RAIL EURO 5 SYSTEM

Exterior

Interior

specification

MASS
DIMENSIONS
ENGINE & TRANSMISSION
PERFORMANCE
BASIC SYSTEMS
EQUIPMENTS
Gross Vehicle Weight Kg 7,500
Kerb Weight Kg 2,490
Number of Seats Persons 03
Fuel Tank Liter 100



Overall Dimension (OL x OW x OH) mm 6,680 x 2,120 x 2,305
Wheelbase (WB) mm 3,815
Front – Rear Tread (AW / CW) mm 1,680 / 1,650
Ground Clearance (HH) mm 200
Front – Rear Overhang (FOH/ROH) mm 1,110 / 1,755
Model 4JJ1E5LE
Type Common rail, turbo – intercooler
Emission Standard Euro 5
Displacement cc 2,999
Max. Power Ps(kW) / rpm 124 (91) / 2,600
Max. Torque N.m(kgf.m) / rpm 354 (36.1) / 1,500
Transmission MYY6S

6 Forward & 1 Reverse

PTO
Max Speed Km/h 88
Gradeability % 35
Min Turning Radius m 7.1
Steering System Recirculating ball with hydraulic assisted
Suspension System Front – Rear Dependent, leaf springs, shock absorber
Brake System Front – Rear Drum, hydraulic with vacuum servo assistance, dual circuit
Tire Size Front – Rear Standard: 7.50R16
Option: 7.50-16 14PR
Generator 24V-50A
Battery 12V-70(AH) x 02
  • 2 Sunvisors for driver and co-driver
  • Power windows & central door lock
  • Inside guard bar
  • Cigar lighter
  • Air Conditioner
  • 3-point seat belts
  • Reversing warning buzzer
  • Cooler and Defroster
  • USB-MP3, AM – FM radio
  • Fog lamps
  • Tilt cab warning buzzer
  • Exhaust brake
